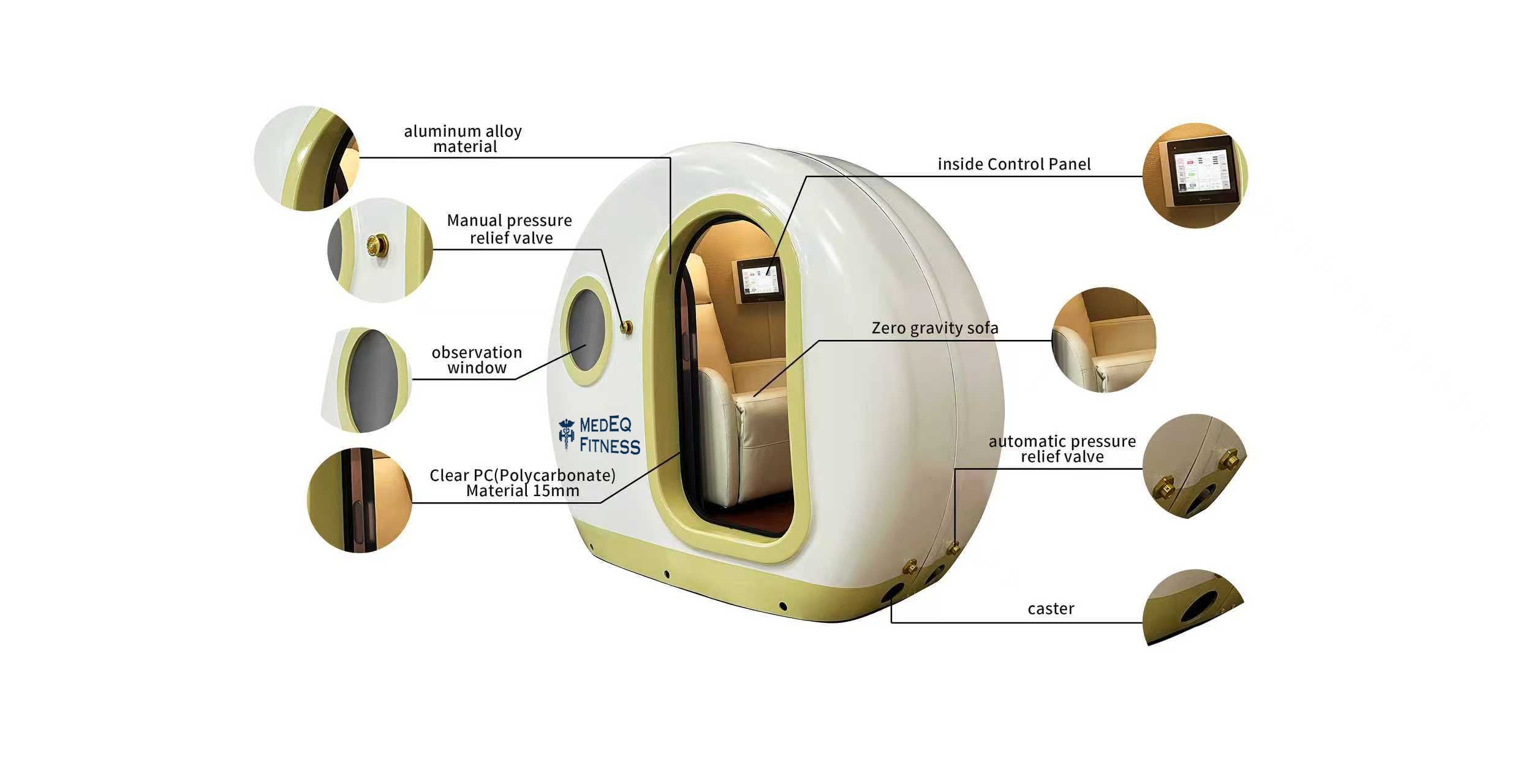

MedEq TimePod 01 – Shell-Shaped 2.0 ATM Hard-Shell Hyperbaric Chamber
Choose options
MedEq TimePod 01 – Shell-Shaped 2.0 ATM Hard-Shell Hyperbaric Chamber
The MedEq TimePod 01 is our shell-shaped, traditional hard-shell hyperbaric oxygen chamber custom manufactured to MedEq Fitness specifications. Built on the Kingshare KX-YK01 platform, it delivers true 2.0 ATA therapeutic pressure with an integrated high-flow oxygen system, advanced air purification, and full environmental control in a compact, design-forward footprint.
Designed for wellness and spa centers, fitness facilities, health clinics, chiropractors, sports performance centers, beauty salons, veterinary practices, and serious home users, the TimePod 01 combines aircraft-grade aluminum alloy construction with intelligent controls, a full BIBS oxygen delivery system, upgraded host unit (air compressor + oxygen concentrator + air conditioner all in one), and intelligent dual-screen controls.
Key Features
True 2.0 ATA therapeutic pressure
Shell-shaped hard chamber rated up to 2.0 ATA (≈2 bar) for higher-intensity hyperbaric protocols.
- Hard shell chamber rated up to 2.0 ATA (≈2 bar) for therapeutic hyperbaric oxygen applications.
- Factory configuration supports a 1.9–2.0 ATA operating range for flexible clinical, wellness, and performance use.
Shell-shaped ergonomic design

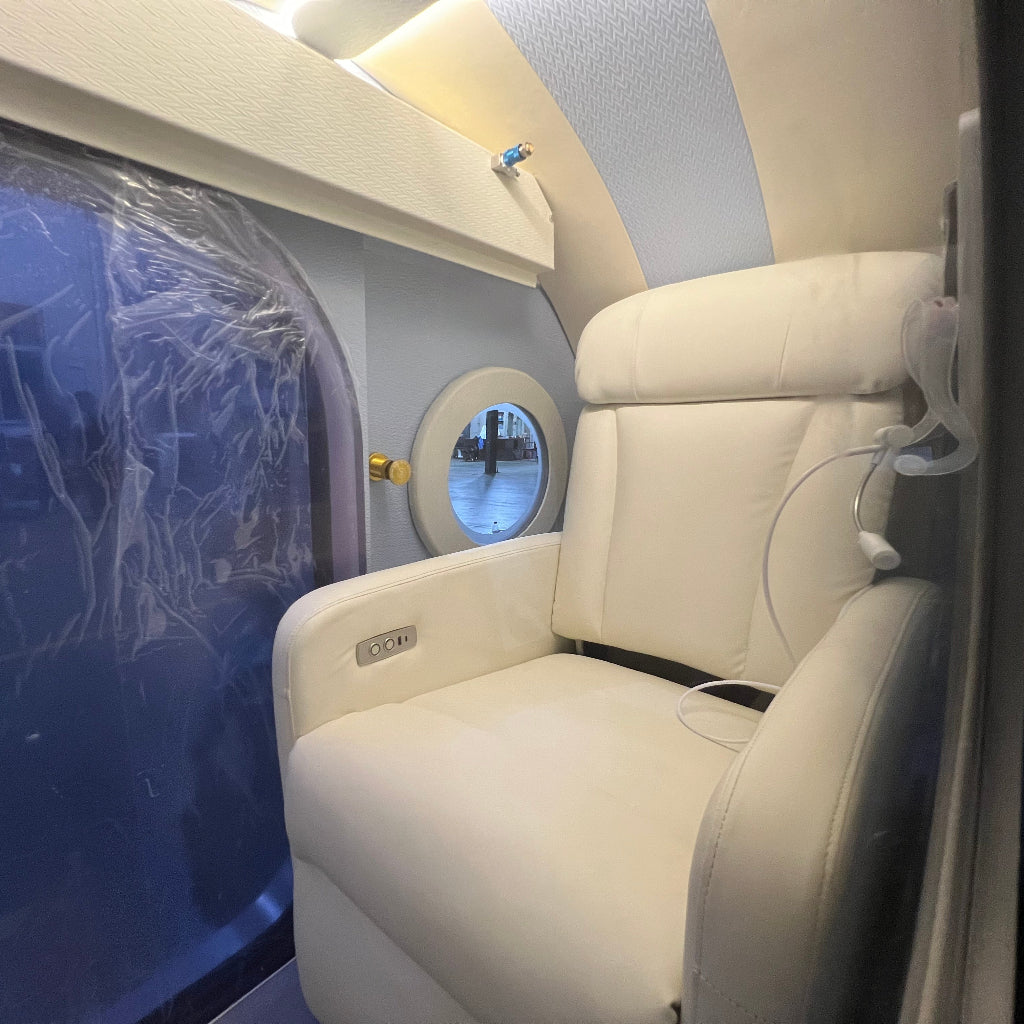

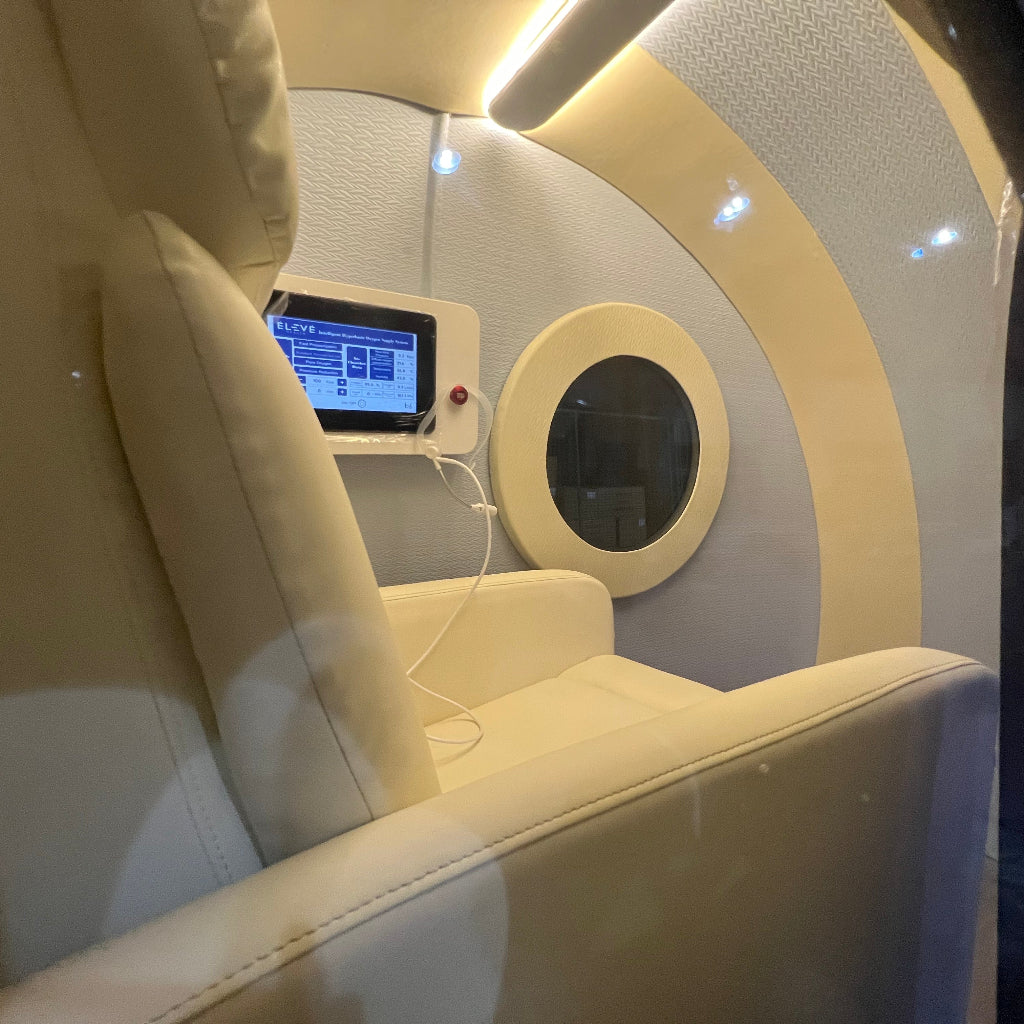

Spacious shell-shaped interior with generous length and diameter for a premium monoplace experience.
- Internal shell-shaped capsule length ~2000 mm (≈78.7 in) with ~980 mm (≈38.6 in) internal width and ~1700 mm (≈66.9 in) internal height in the single-user configuration.
- Optional expanded configuration around 2000 mm (≈78.7 in) length × 1480 mm (≈58.3 in) width × 1700 mm (≈66.9 in) height supports 2–4 users.
- Recumbent “pod” design and curved shell geometry support a comfortable lying or reclined position with improved perceived spaciousness.
Aircraft-grade aluminum alloy shell
Shell constructed from aircraft-grade aluminum alloy for high compressive strength and reduced weight.
- Shell material: aircraft-grade aluminum alloy engineered for pressure vessel applications.
- High pressure resistance and light weight to support daily clinical and wellness throughput.
High-transparency cabin door & windows
Aviation-style transparent door and windows for easier entry and a more open, less claustrophobic feel.
- Aviation-grade, high-transparency cabin door engineered for safe, smooth entry and exit.
- Large viewing windows support user comfort and make monitoring easier for staff.
Optional Upgrade: Built-In Breathing System (BIBS)
Add an optional BIBS (Built-In Breathing System) for advanced mask-based oxygen delivery while keeping chamber air at safe ambient oxygen levels.
- BIBS delivers high-purity oxygen directly through a sealed mask instead of enriching the chamber air.
- Supports safer operation by helping maintain ambient cabin oxygen near room-air levels.
- Dedicated supply and exhaust pathways help remove exhaled CO₂ and maintain a controlled in-chamber atmosphere.
- Ideal for clinics, wellness centers, and advanced home users who want protocol-driven oxygen delivery.
- Learn more about the BIBS upgrade →
All-in-one host unit: compressor + O₂ + AC
Three-in-one host equipment: compressor, PSA oxygen concentrator, and air conditioner in a single unit.
- Single external host powers the entire system:
- Oil-free air compressor for pressurization
- PSA oxygen concentrator
- Integrated air-conditioning for cabin temperature control
- Reduces clutter and installation complexity compared to separate components.
- Intelligent host control with automated pressurization / depressurization curves.
Upgraded oxygen system & flow capacity
High-purity PSA oxygen system (≈93% ±3%) with high flow capacity for 2.0 ATA protocols.
- PSA oxygen generator delivering high-purity oxygen (≈93% ±3%) at therapeutic pressure.
- High-flow output (up to ~15 L/min at 2.0 ATA, unit-set) feeding the BIBS system for stable oxygen delivery during the entire session.
- Oxygen pressure at the host typically in the 120–140 kPa range (behind the BIBS regulators), engineered for reliable performance under load.
Multi-stage air filtration & ionization
Multi-stage intake filtration and ionization to keep the shell-shaped cabin’s air clean and fresh.
- Multi-stage intake filtration prior to cabin delivery (particulate + advanced filters) to help remove dust and airborne contaminants.
- Integrated air purification with negative ionization to help freshen incoming air and improve perceived air quality inside the chamber.
- Cabin oxygen diffusion kept at or below 23% to align with safety norms for fire risk mitigation.
Smart control & communication
Dual intelligent control screens and intercom, mirroring the C750+ user experience inside a shell-shaped pod.
- Dual control screens (inside and outside) for full duplex control by both operator and user.
- Wireless intercom built into the pod so staff can monitor and communicate with the user at all times.
- Intelligent programmed pressure curves with manual override and emergency depressurization options.
Safety systems
Safety architecture aligned with C750+, with shell-shaped construction and redundant relief valves.
- Hard-shell chamber constructed from aircraft-grade aluminum alloy engineered for pressure vessel applications.
- Redundant safety valves and pressure relief hardware for over-pressure protection.
- Emergency stop and rapid depressurization features to bring the chamber back to ambient pressure quickly if required.
- Designed to align with international mild-HBOT best practices for 2.0 ATA class systems (when installed and operated according to manufacturer guidance).
Chamber (Shell) Specifications
Typical configuration: 1.9 ATA operating setpoint (adjustable down to mild pressures)
Width: ~980 mm (≈38.6 in)
Height: ~1700 mm (≈66.9 in)
Width: ~1480 mm (≈58.3 in)
Height: ~1700 mm (≈66.9 in)
1 × oxygen absorption terminal (BIBS connection point)
Interior finish & lighting
Wireless intercom
Internal touch/control screen (duplex with outside screen)
Host Unit (Compressor + O₂ + AC – all in one)
Oxygen Delivery & BIBS
Exhaled gas routed away from the cabin atmosphere via BIBS exhaust circuit to help control CO₂ and humidity
Filtration & Ionization
MedEq Fitness uses the Kingshare KX-YK01 shell-shaped platform customized to our specifications, sharing the same host equipment, BIBS system, oxygen generation, and filtration architecture as our C750+ capsule chamber.
