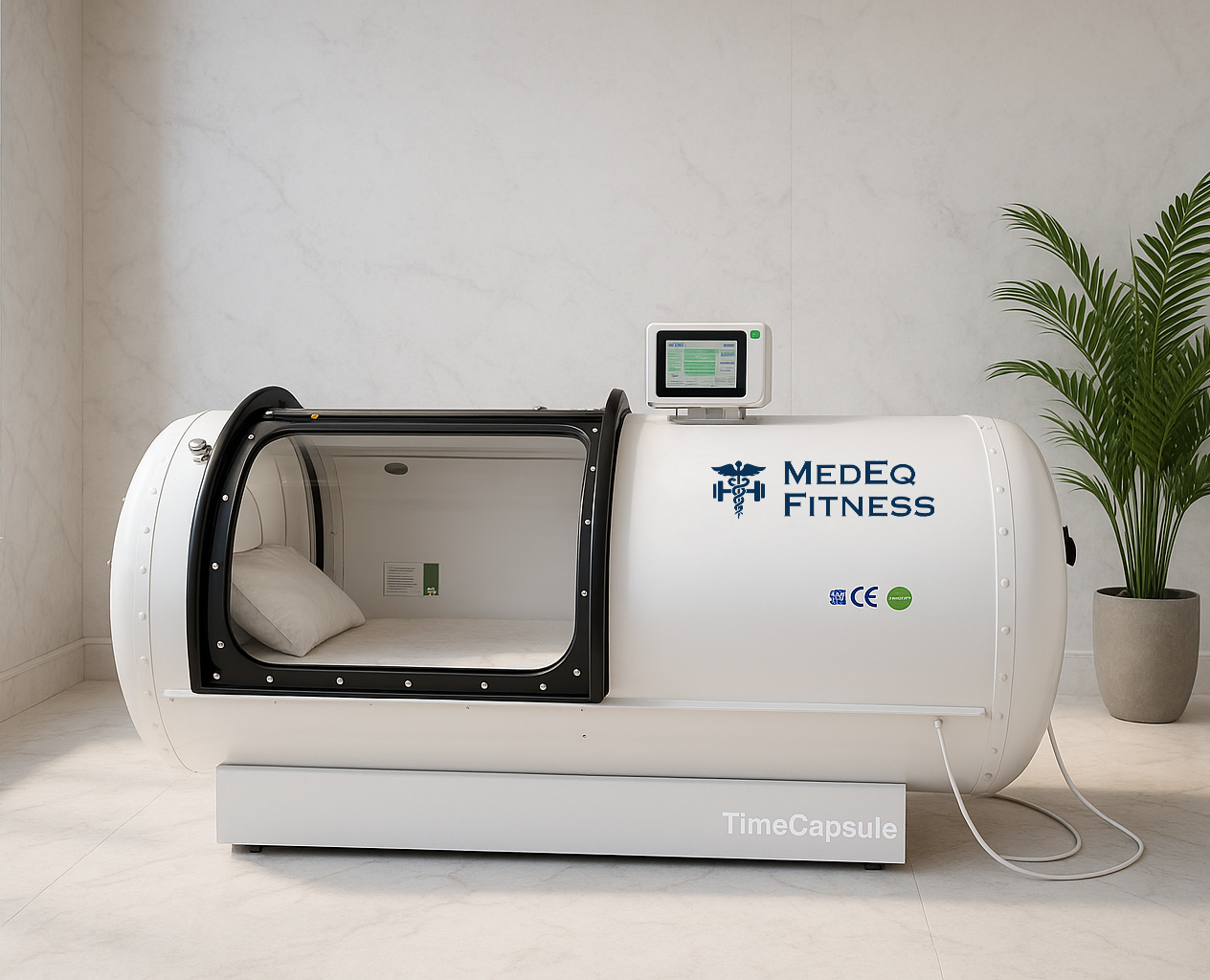

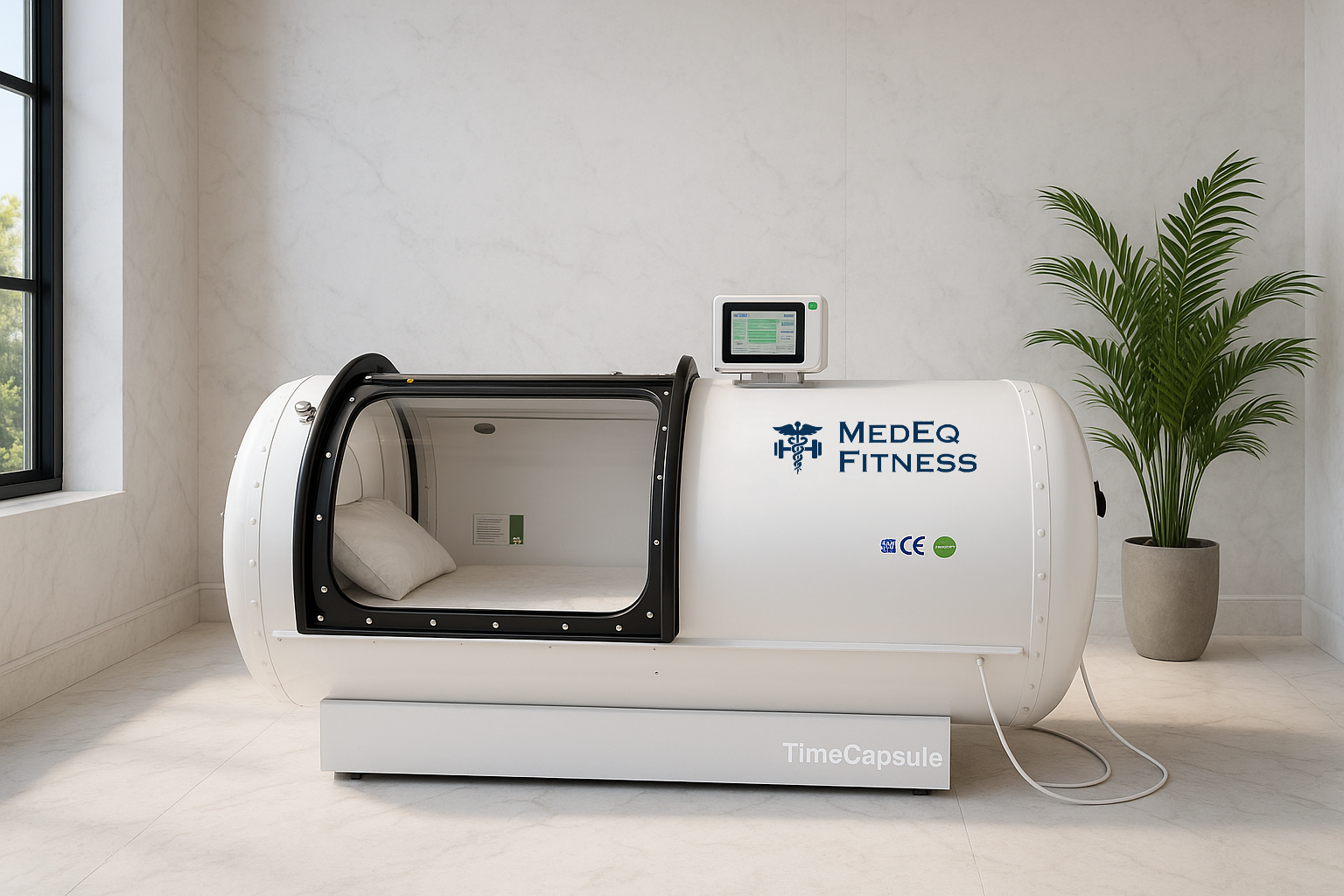

MedEq C900+ Capsule Hard-Shell Hyperbaric Oxygen Chamber
The MedEq C900+ is our expanded, traditional capsule-style hard-shell hyperbaric oxygen chamber custom manufactured to MedEq Fitness specifications. Built on the larger Kingshare KX-YW01 platform, it delivers true 2.0 ATA therapeutic pressure with an integrated high-flow oxygen system, advanced air purification, and full environmental control in a spacious, luxury-grade footprint.
Designed for use by fitness enthusiasts, athletes, clinics, recovery centers, med-spas, and serious home users, the C900+ combines medical-grade engineering with physician-led curation, including a full BIBS oxygen delivery system, upgraded host unit (air compressor + oxygen concentrator + air conditioner all in one), and intelligent dual-screen controls—while offering a larger internal capsule than the C750+.
Key Features
True 2.0 ATA therapeutic pressure
Capsule-type hard shell chamber rated up to 2.0 ATA (≈2 bar) for higher-intensity protocols.
- Capsule-type hard shell chamber rated up to 2.0 ATA (≈2 bar) for therapeutic hyperbaric oxygen applications.
- Factory KX-YW01 configuration supports a 1.9–2.0 ATA operating range for flexible clinical and wellness use.
Spacious capsule design
Oversized capsule (~2300 mm / 90.6 in length, 900 mm / 35.4 in diameter) for a more generous monoplace layout.
- Internal capsule length ~2300 mm (≈90.6 in) with 900 mm (≈35.4 in) diameter for an extra-spacious monoplace layout.
- Provides more room than the C750+ for taller or broader users, or those who prefer additional space.
- Recumbent “pod” design supports a comfortable lying or reclined position with more interior clearance.
Optional Upgrade: Built-In Breathing System (BIBS)
Add an optional BIBS (Built-In Breathing System) for advanced mask-based oxygen delivery while helping maintain safe ambient oxygen levels inside the chamber.
- BIBS delivers high-purity oxygen directly through a sealed mask instead of enriching the entire chamber air.
- Supports safer operation by helping keep cabin oxygen closer to room-air levels.
- Dedicated supply and exhaust pathways help manage exhaled CO₂ and maintain a controlled in-chamber atmosphere.
- Ideal for clinics, recovery centers, and advanced home users who want protocol-driven oxygen delivery.
- Learn more about the BIBS upgrade →
All-in-one host unit: compressor + oxygen concentrator + AC
Same three-in-one host as the C750+: compressor, PSA oxygen concentrator, and air conditioner in a single unit.
- Single external host powers the entire system:
- Oil-free air compressor for pressurization
- PSA oxygen concentrator
- Integrated air-conditioning for cabin temperature control
- Reduces clutter and installation complexity compared to separate components.
- Intelligent host control with automated pressurization / depressurization curves.

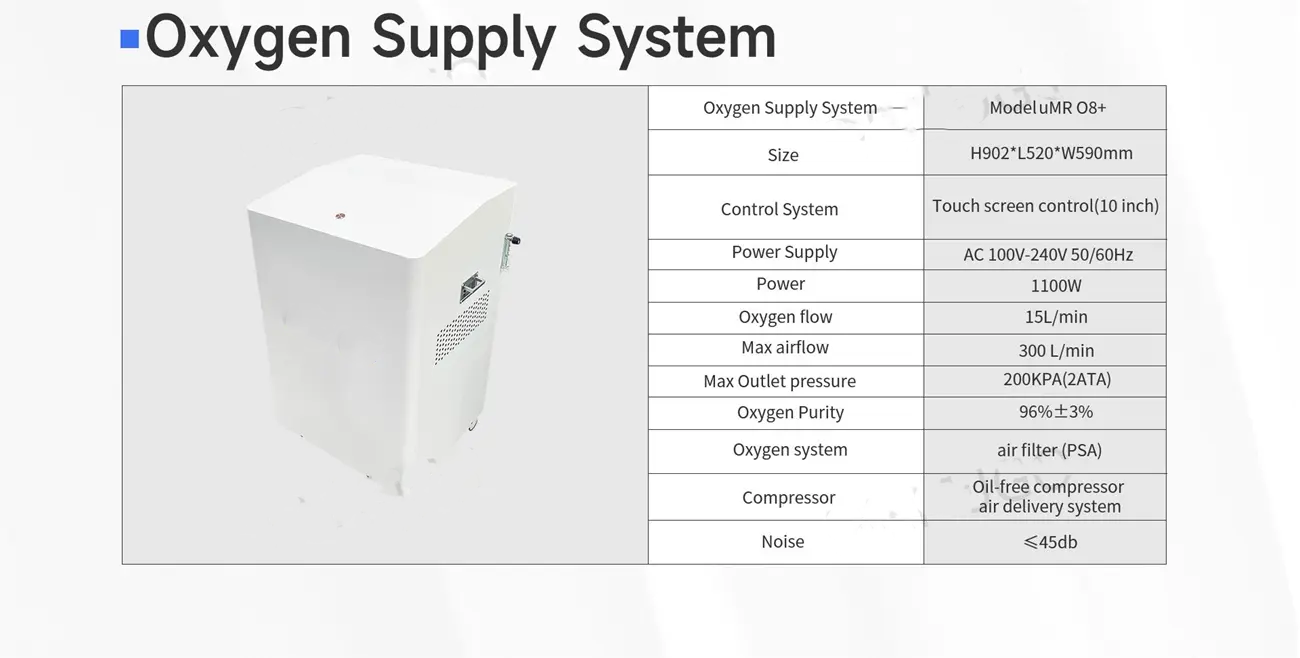

Upgraded oxygen system & flow capacity
High-purity PSA oxygen system identical to the C750+, optimized for a larger cabin volume.
- PSA oxygen generator delivering high-purity oxygen (≈93% ±3%) at therapeutic pressure.
- High-flow output (up to ~15 L/min at 2.0 ATA, unit-set) feeding the BIBS system for stable oxygen delivery during the entire session.
- Oxygen pressure at the host typically in the 120–140 kPa range (behind the BIBS regulators), engineered for reliable performance under load.
Multi-stage air filtration & ionization
Multi-stage intake filtration and ionization to keep the larger cabin’s air clean and fresh.
- Multi-stage intake filtration prior to cabin delivery (particulate + advanced filters) to help remove dust and airborne contaminants.
- Integrated air purification with negative ionization to help freshen incoming air and improve perceived air quality inside the chamber.
- Cabin oxygen diffusion kept at or below 23% to align with safety norms for fire risk mitigation.
Environmental comfort & noise control
Integrated cooling and quiet operation create a comfortable in-chamber environment for larger users.
- Integrated cooling via the host’s air-conditioning loop to maintain comfortable cabin temperature.
- Engineered for quiet operation with low internal cabin noise; typical host noise kept in the ≤50 dB range so users can relax or use media devices during treatment.
- Stable cabin humidity around ~26% for consistent comfort even in longer sessions.

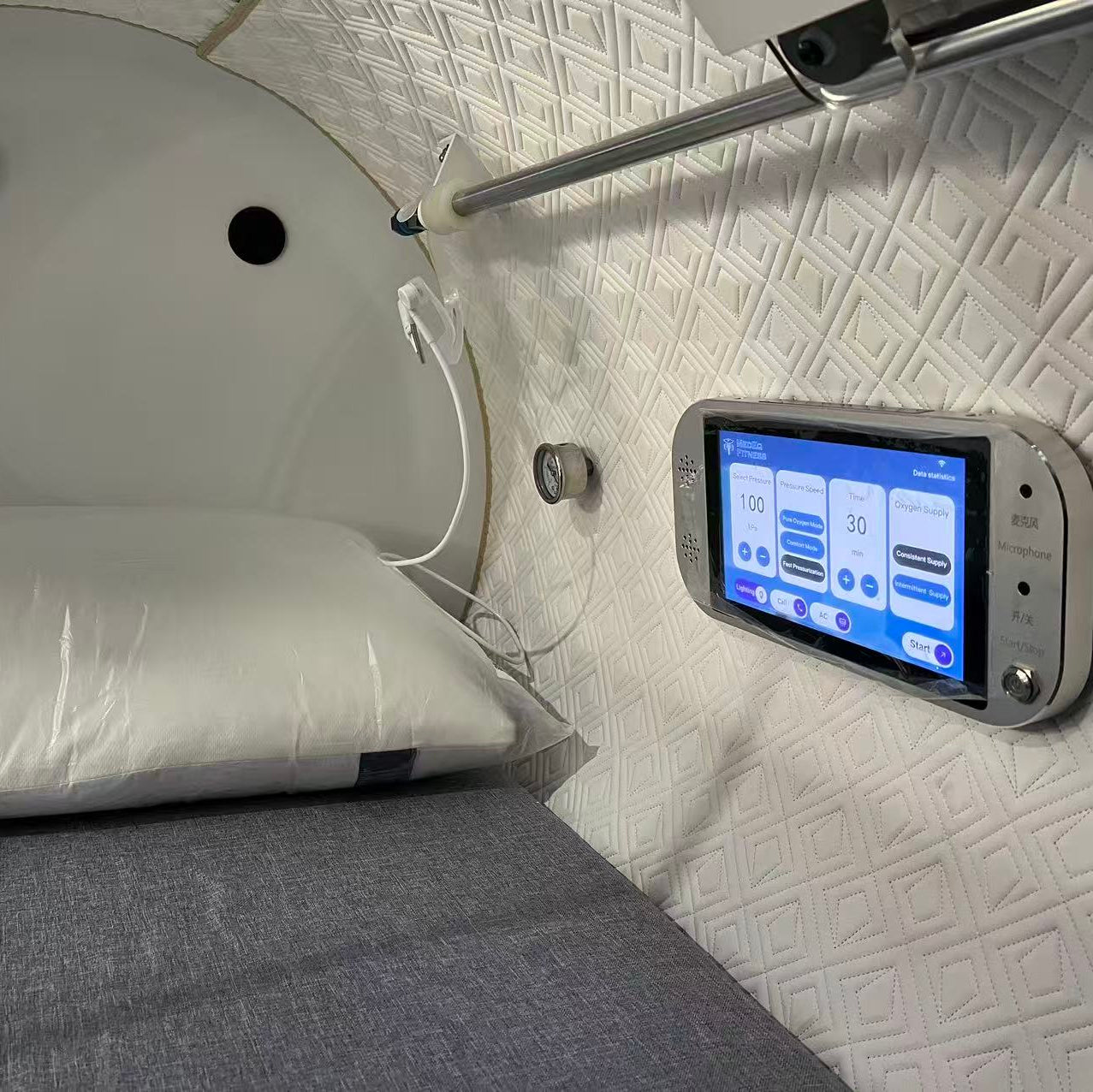

Smart control & communication
Dual control screens and wireless intercom support full duplex communication and control, just like the C750+.

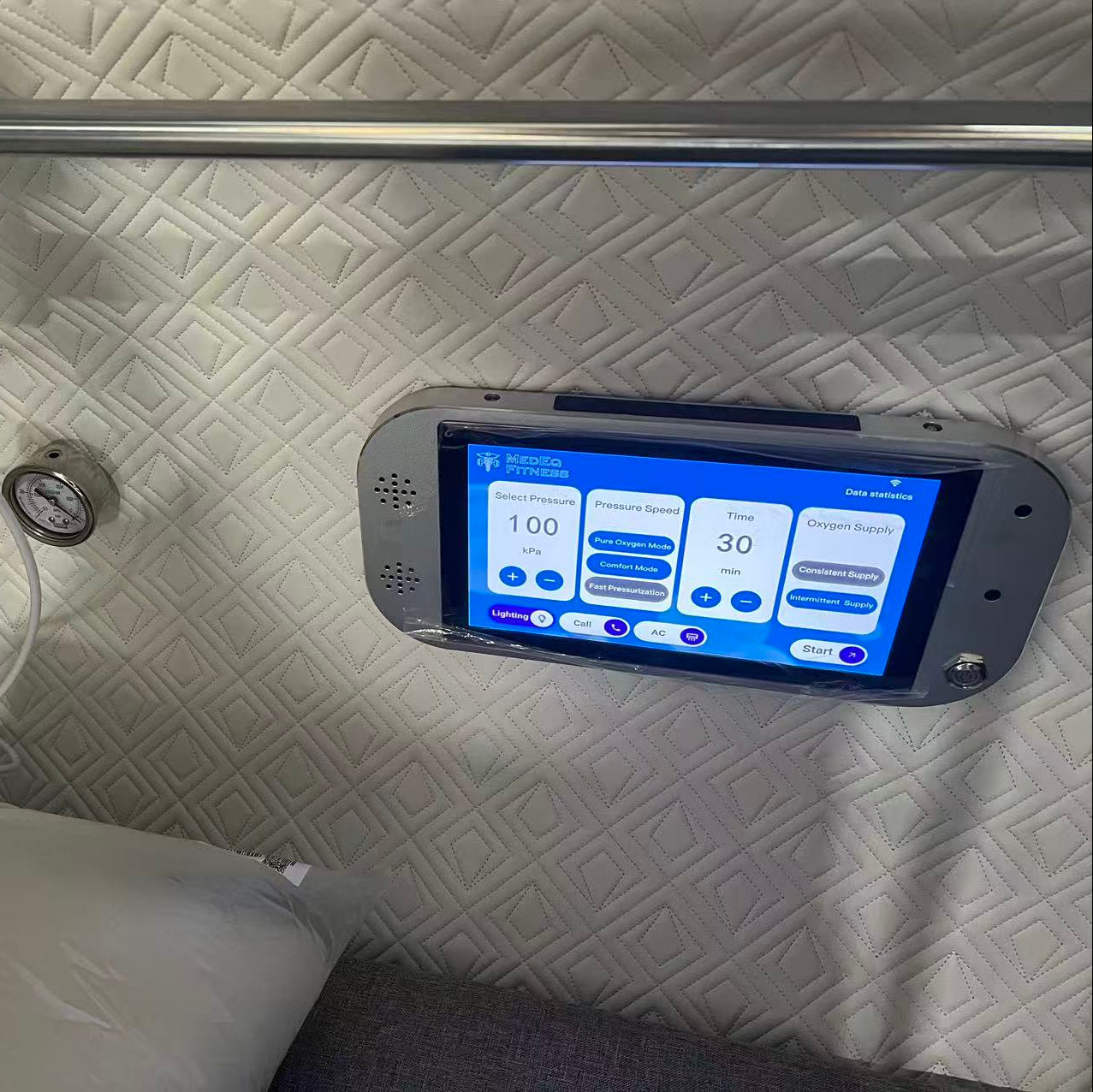

- Dual control screens (inside and outside) for full duplex control by both operator and user.
- Wireless intercom built into the capsule so staff can monitor and communicate with the user at all times.
- Intelligent programmed pressure curves with manual override and emergency depressurization options.
Safety systems
Aircraft-grade aluminum alloy shell with redundant safety valves and emergency depressurization.
- Hard-shell capsule constructed from aircraft-grade aluminum alloy engineered for pressure vessel applications.
- Redundant safety valves and pressure relief hardware for over-pressure protection.
- Emergency stop and rapid depressurization features to bring the chamber back to ambient pressure quickly if required.
- Designed to align with international mild-HBOT best practices for 2.0 ATA class systems (when installed and operated according to manufacturer guidance).
Chamber (Capsule) Specifications
Typical configuration: 1.9 ATA operating setpoint (adjustable down to mild pressures)
Diameter: ~900 mm (≈35.4 in)
Interior finish & lighting
Wireless intercom
Internal touch/control screen (duplex with outside screen)
Host Unit (Compressor + O₂ + AC – all in one)
Oxygen Delivery & BIBS
Exhaled gas routed away from the cabin atmosphere via BIBS exhaust circuit to help control CO₂ and humidity
Filtration & Ionization
MedEq Fitness uses the Kingshare KX-YW01 platform customized to our specifications for the C900+, sharing host equipment, BIBS architecture, oxygen generation, and filtration systems with the C750+ while providing a larger capsule interior.
