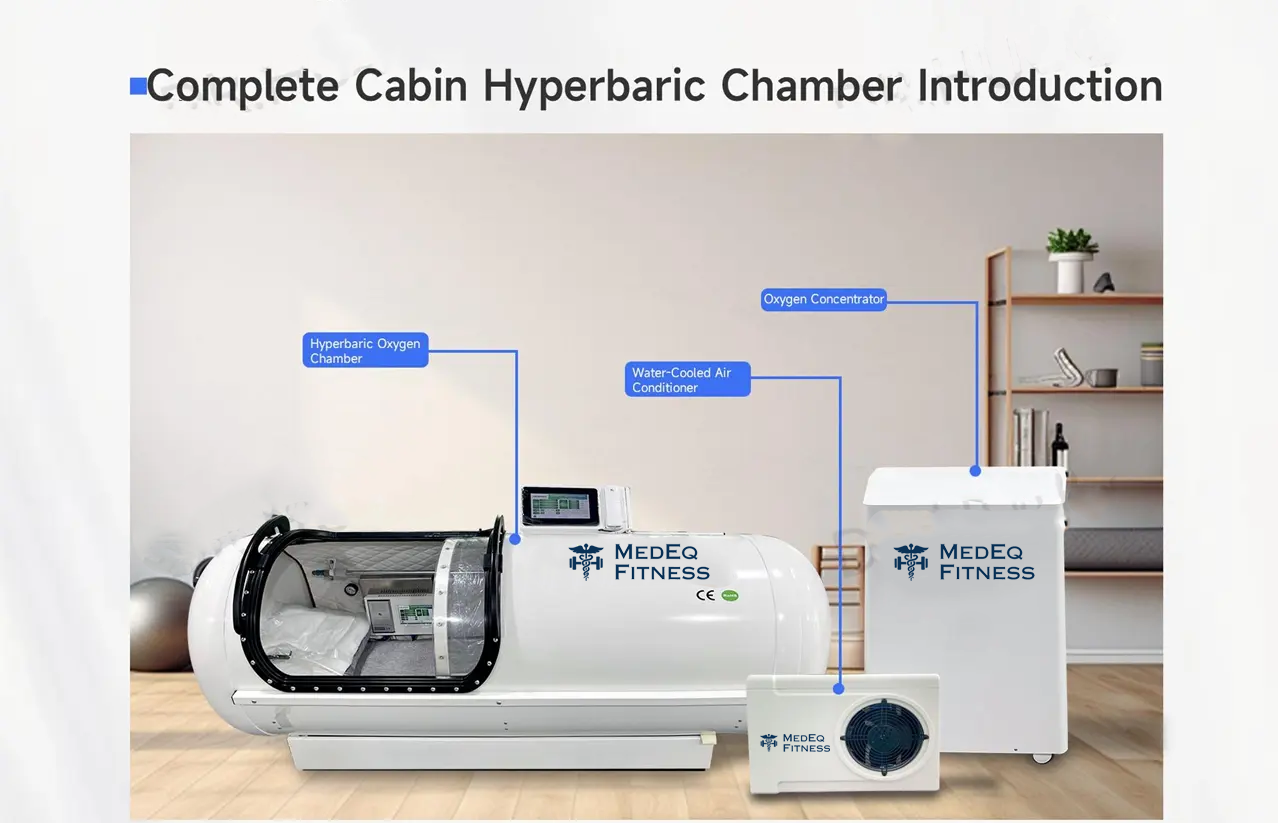

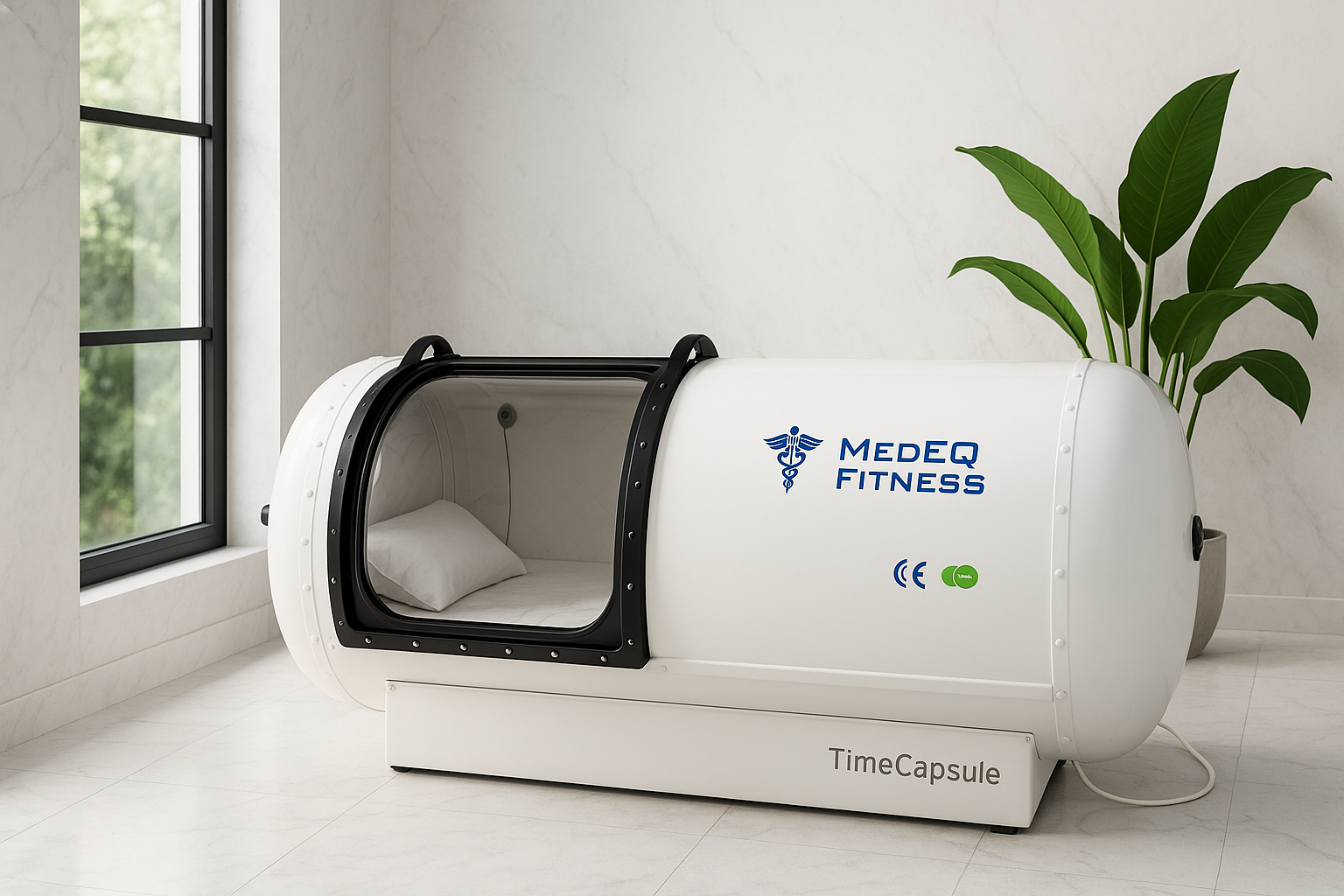

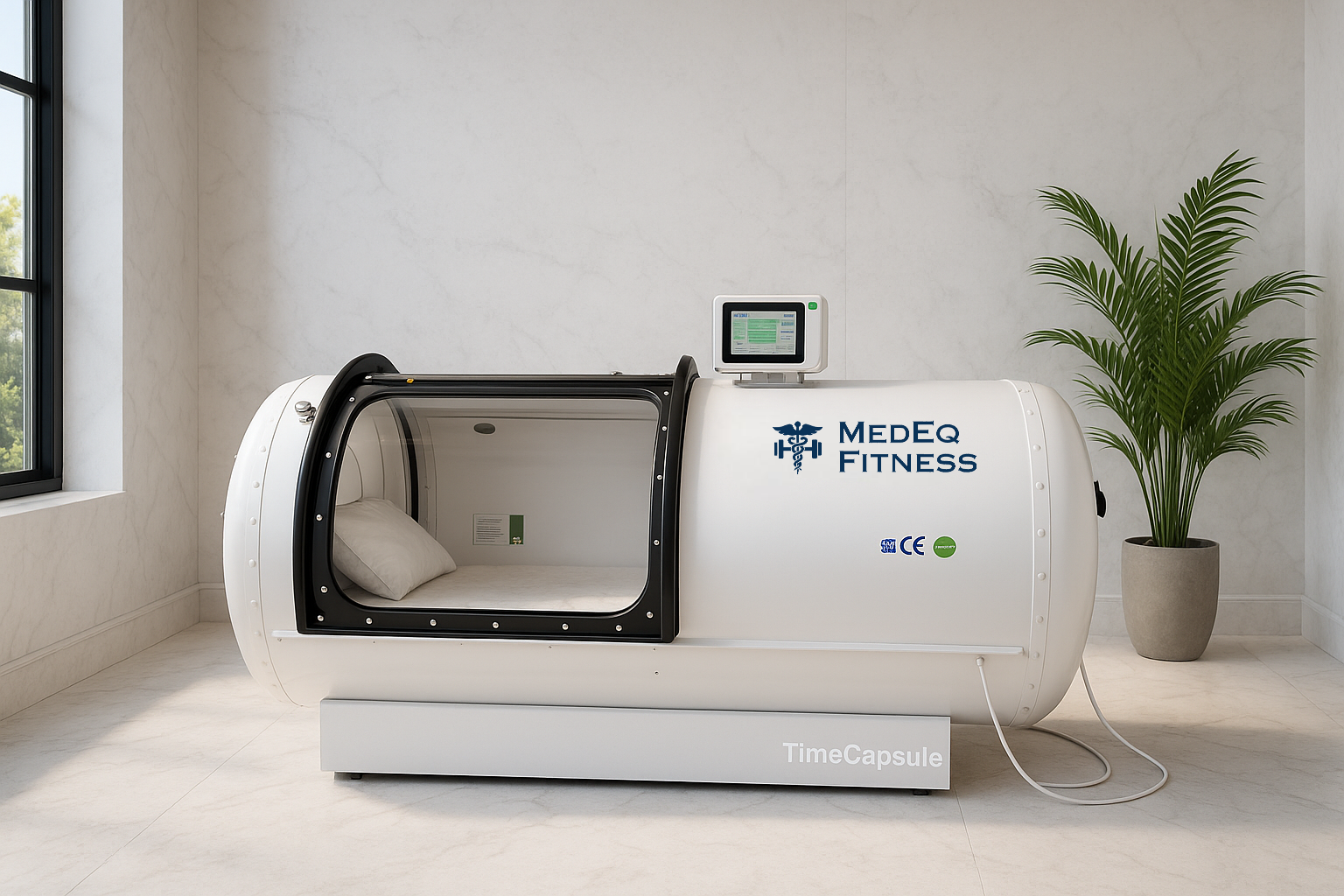

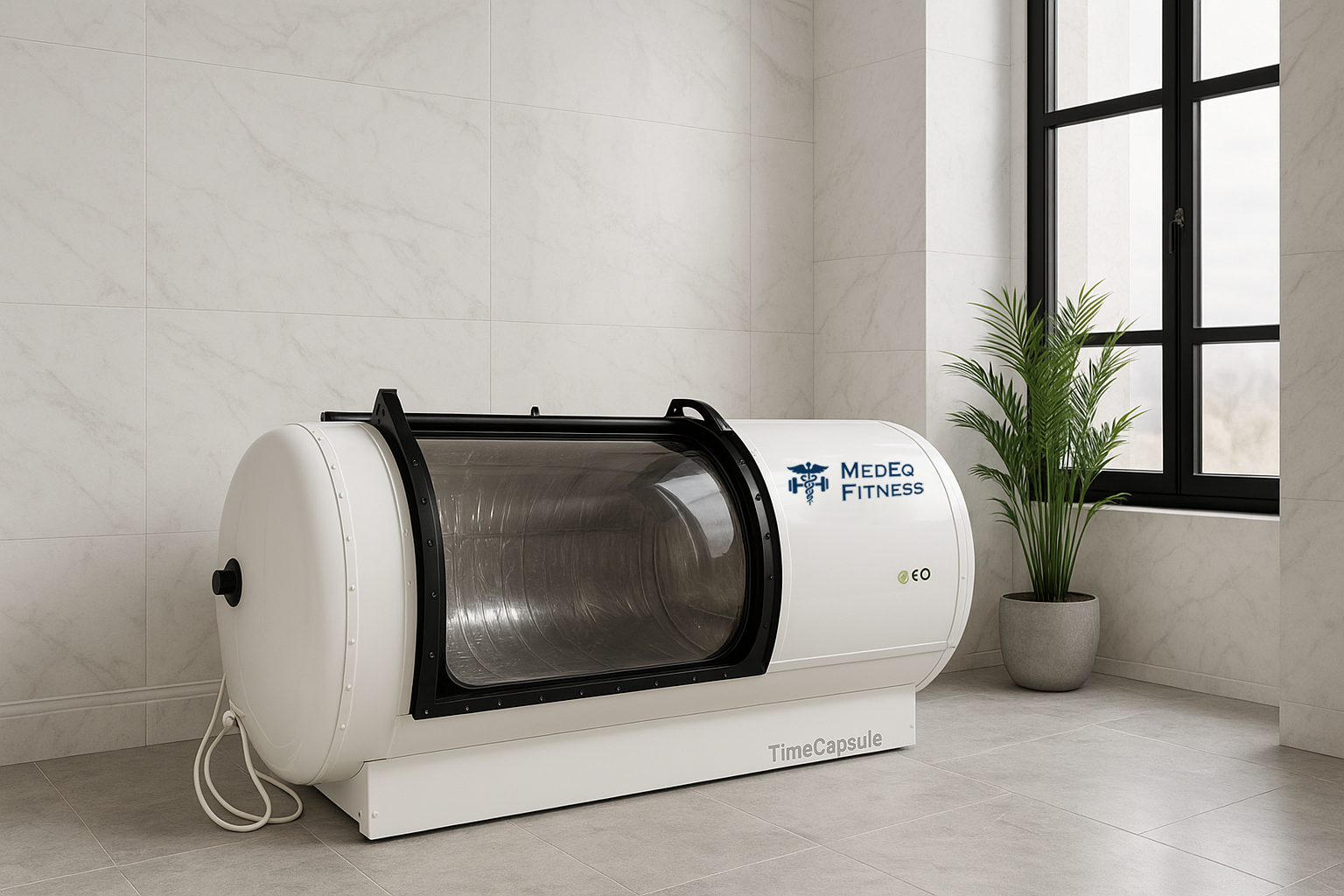

The TimeCapsule C750+ by LANNX is a state-of-the-art capsule-style hyperbaric chamber built for advanced therapeutic use in clinics, wellness centers, and high-end residential settings. Crafted from 304 stainless steel and designed for strength, comfort, and user-friendly control, this unit delivers oxygen therapy with superior safety, smart automation, and sleek modern aesthetics.
Specifications
-
Chamber Type: Capsule-Style Hard-Shell Hyperbaric Chamber
-

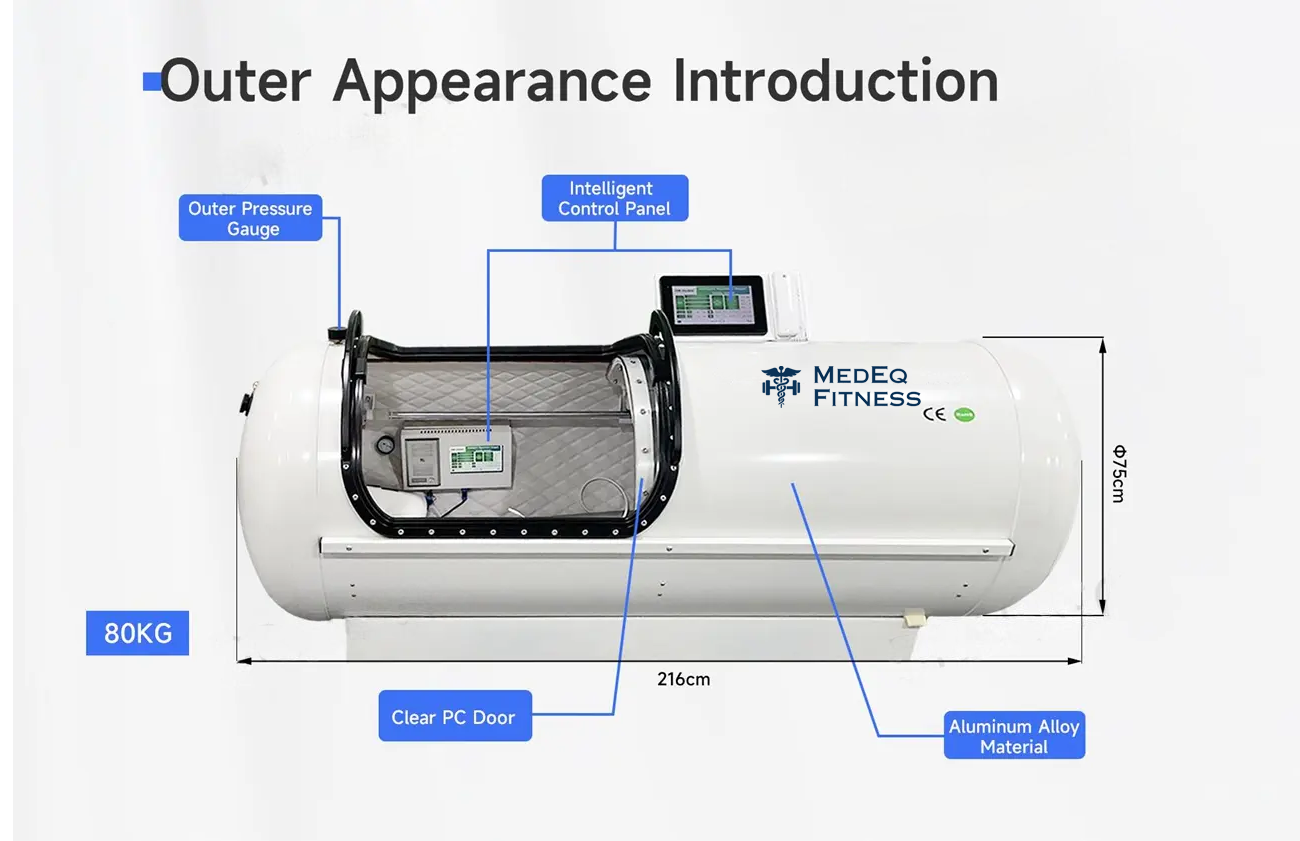

Chamber Dimensions: 75cm × 216 cm (29.5in x 85in)
-
Chamber Material: 304 stainless steel with PU leather + bamboo fiber interior
-
Door Material: Transparent polycarbonate (PC)
-
Working Pressure: 100–200 KPa (up to 2.0 ATA)
-
Noise Level: <30 dB inside chamber
-
Oxygen Concentration: ≤30% diffuse in chamber (96% ± 3% delivered via concentrator)
-

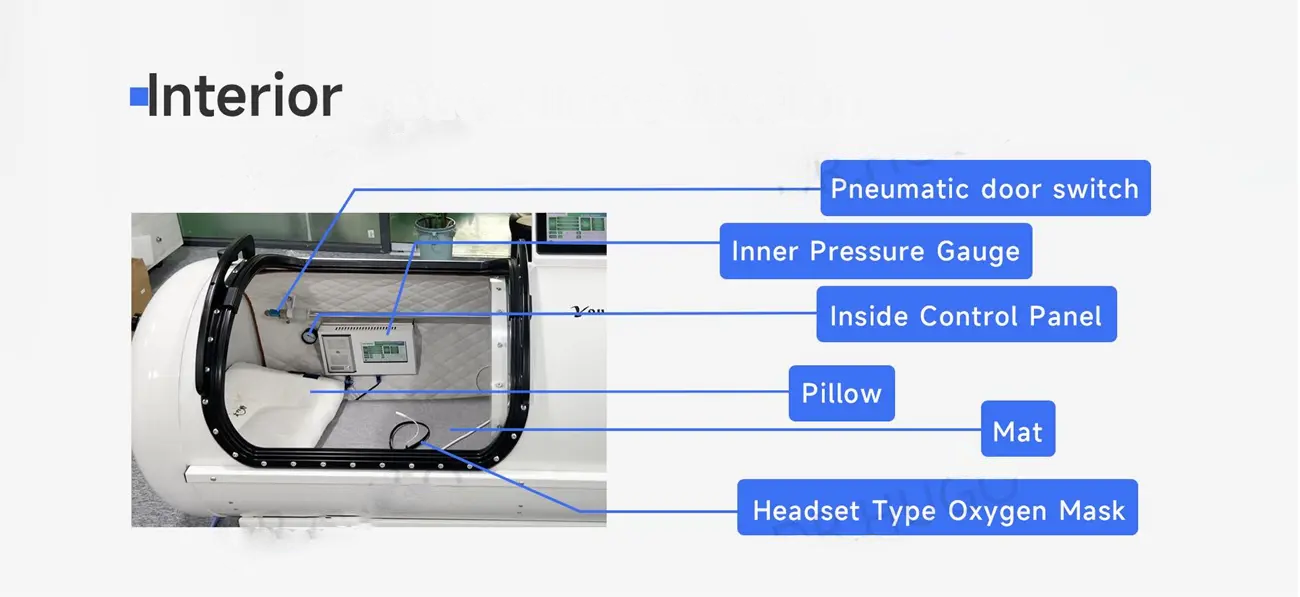

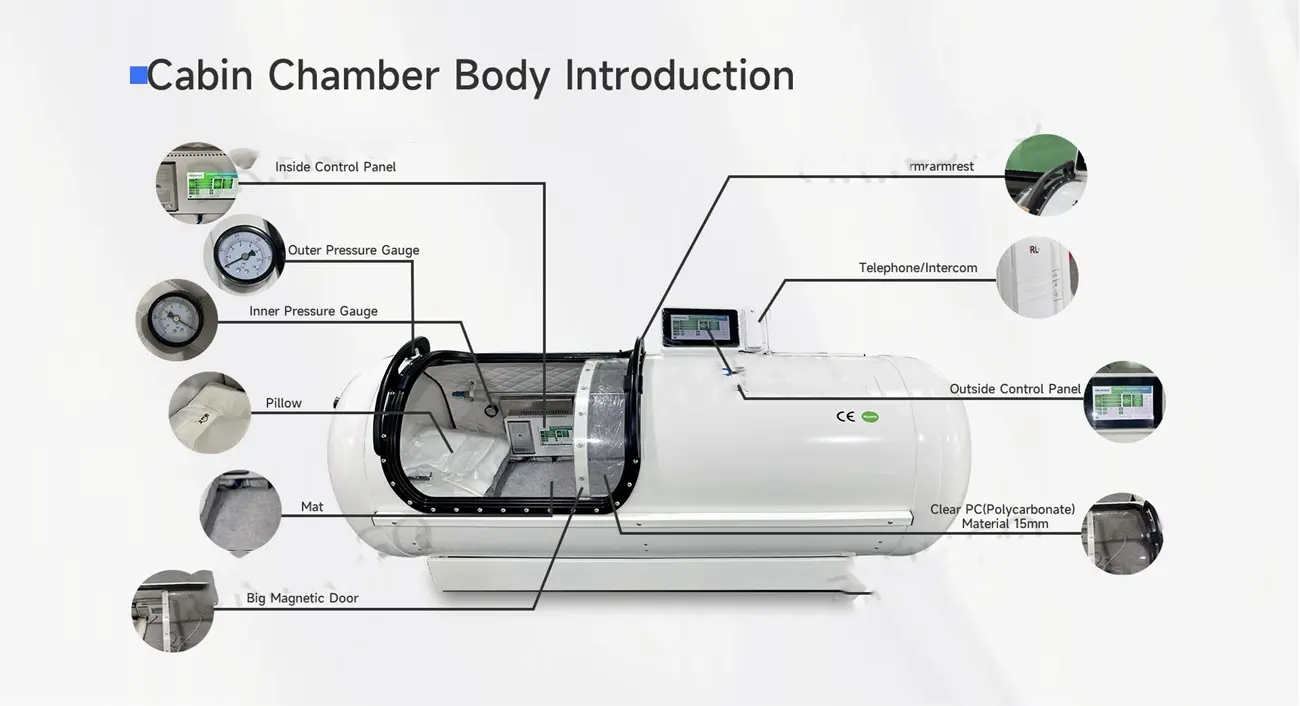

Control System: Dual control panels (internal touch UI + external panel)
-
Power Supply: AC 100–240V, 50/60Hz
Features
-
Stainless Steel Body: Industrial-grade construction supports up to 1000 kg and resists wear, deformation, and corrosion.
-
Environmental Spray Finish: Durable and customizable in white, grey, or custom colors.
-
10” Touchscreen Control Panel: Displays oxygen purity, temperature, humidity, and pressure in real time.
-
Automated Pressure Control: Smart regulation system with curve display, timing, and maintenance alerts.
-
Double Operation System: Inside and outside control panels with rotary timer and intercom system.
-
Wide Front Window: Large viewing area and spacious interior minimize claustrophobia.
-
Noise-Controlled Compressor: Quiet sessions with oil-free air delivery system.
-

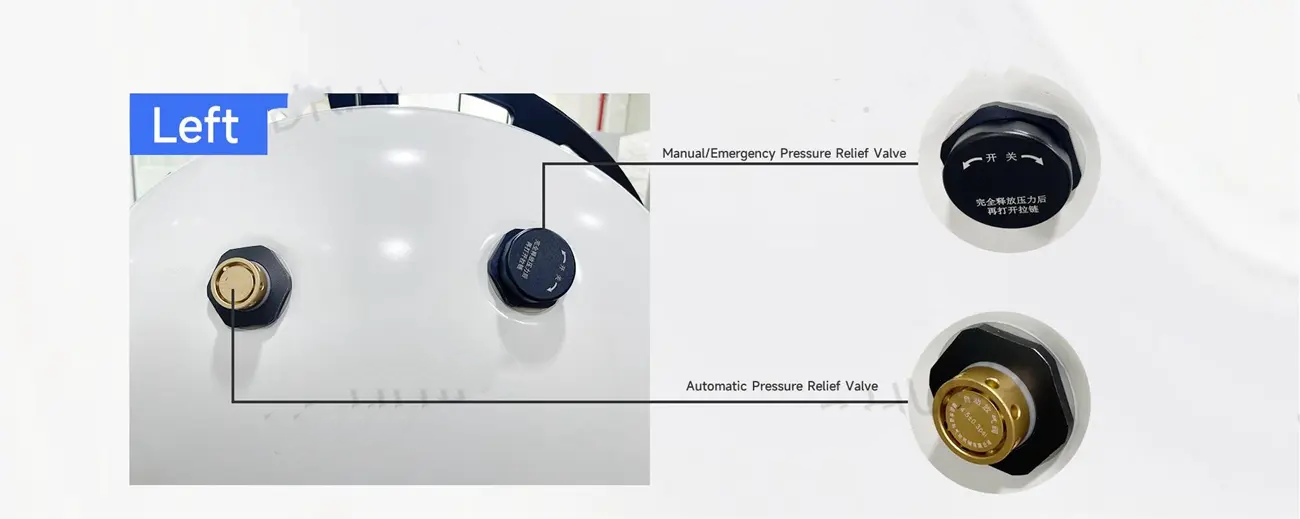

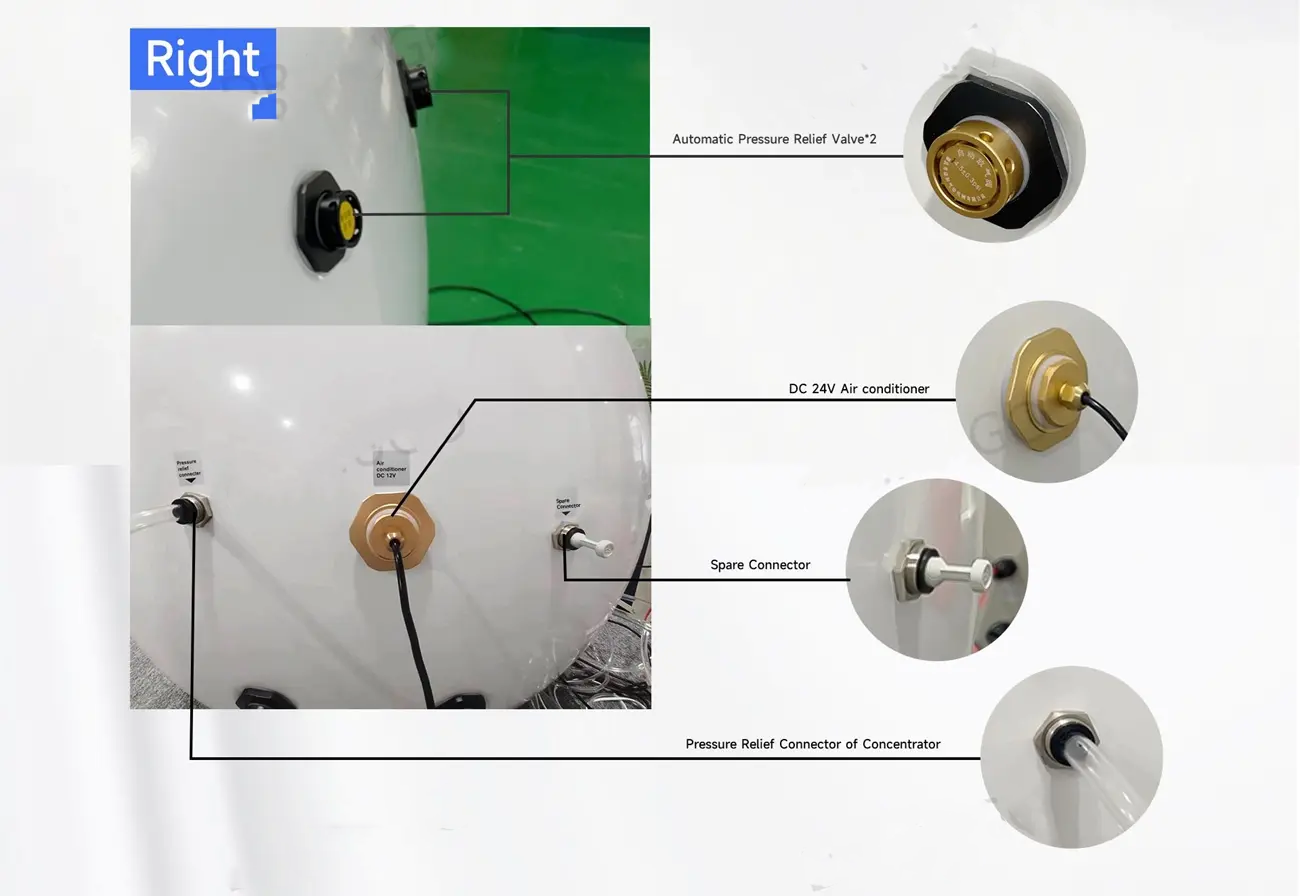

Dual Safety Valves: Manual and automatic relief valves included for redundancy and safety.
-

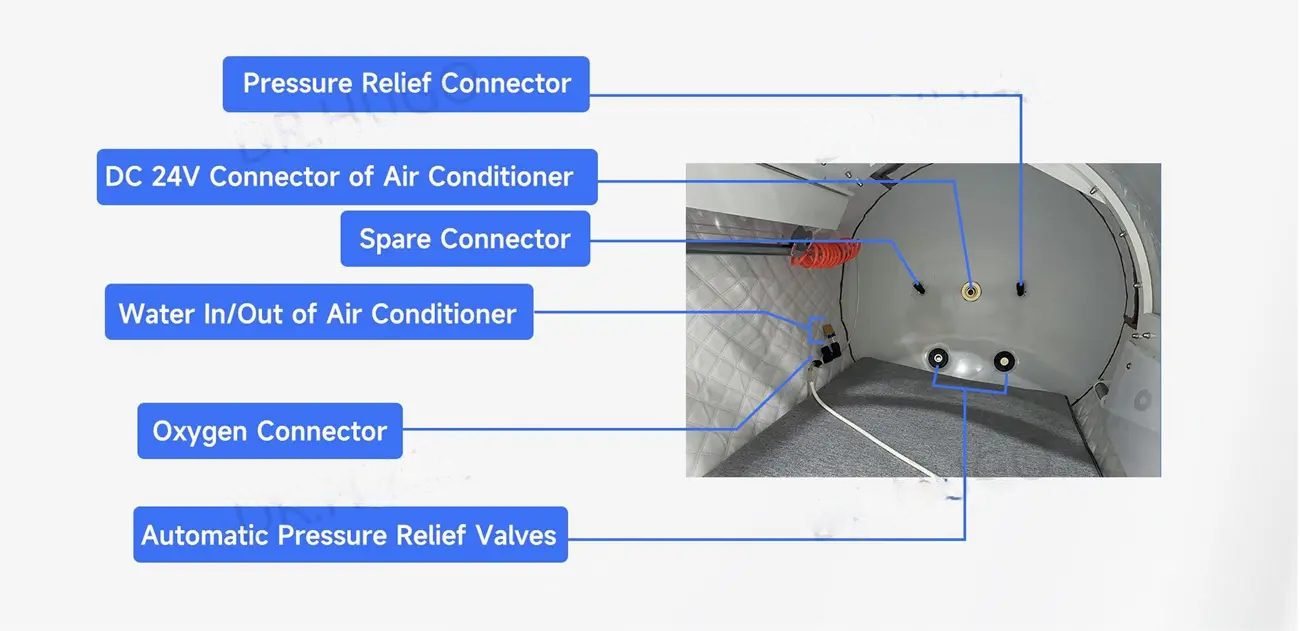

Optional Cooling System: Water-cooled air conditioner (500W) available for enhanced comfort.
-
In-Chamber Power Supply: Optional dual-voltage (12/24V) 600W socket.
-
Built-in Communication System: Internal/external wireless intercom (rechargeable).

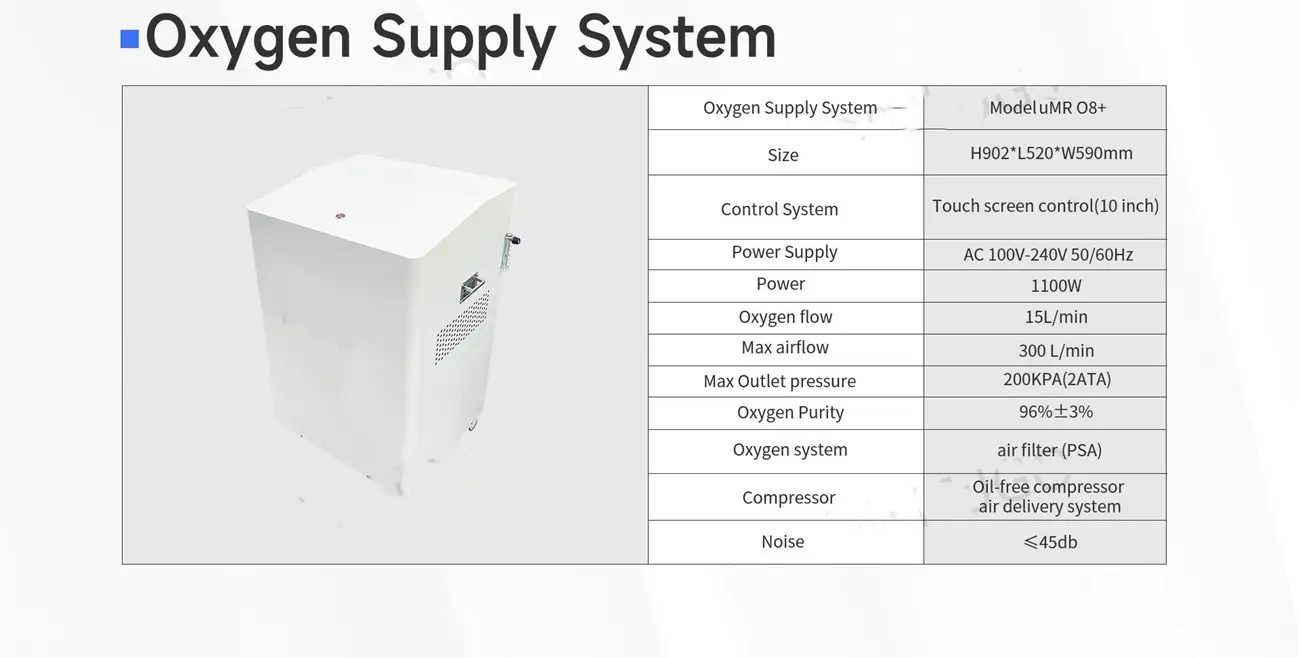

Oxygen Supply System (uMR O8)
-
Oxygen Flow: 15 L/min (96% ± 3% purity)
-
Compressor Type: Oil-free, max output pressure 200 KPa (2 ATA)
-
Power: 750W
-
Noise Level: ≤45 dB
-
Touchscreen Control + Backup Panel
-
Air & Oxygen Pipe Diameters: 12 mm (air), 8 mm (oxygen)
Maintenance
-
Daily: Wipe chamber and monitor panel surfaces with mild disinfectant.
-
Weekly: Inspect safety valves, door seal, and touch panel responsiveness.
-
Annually: Service oxygen generator and recalibrate compressor system.
Warranty
-
Chamber Structure & Shell: 3 years
-
Control Panel & Compressor: 2 years
-
Interior & Accessories: 1 year
MedEq Fitness — Precision Wellness in Every Breath.
The TimeCapsule C750+ brings together intelligent oxygen therapy, user-first design, and professional-grade safety for a hyperbaric experience like no other.
