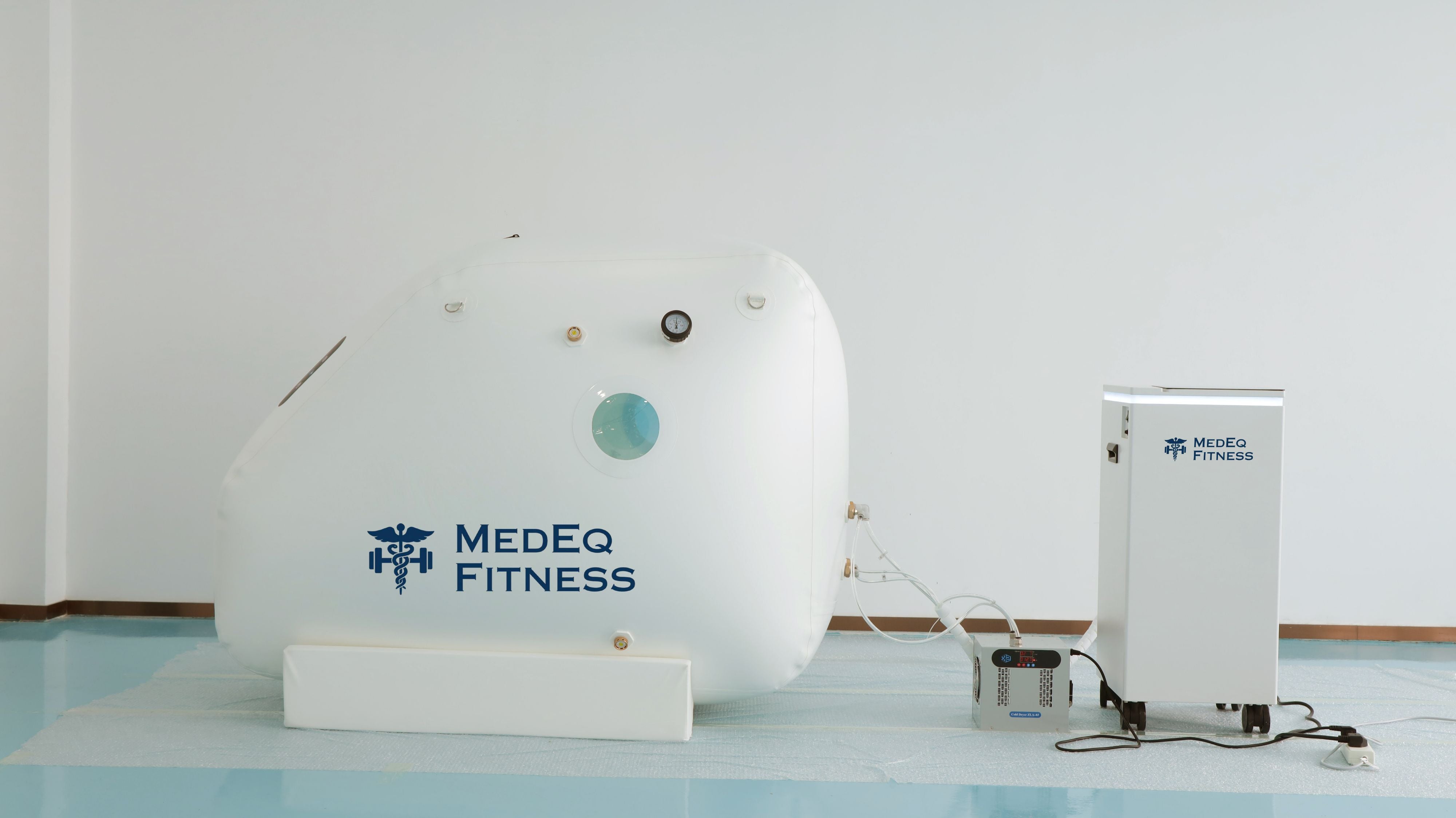

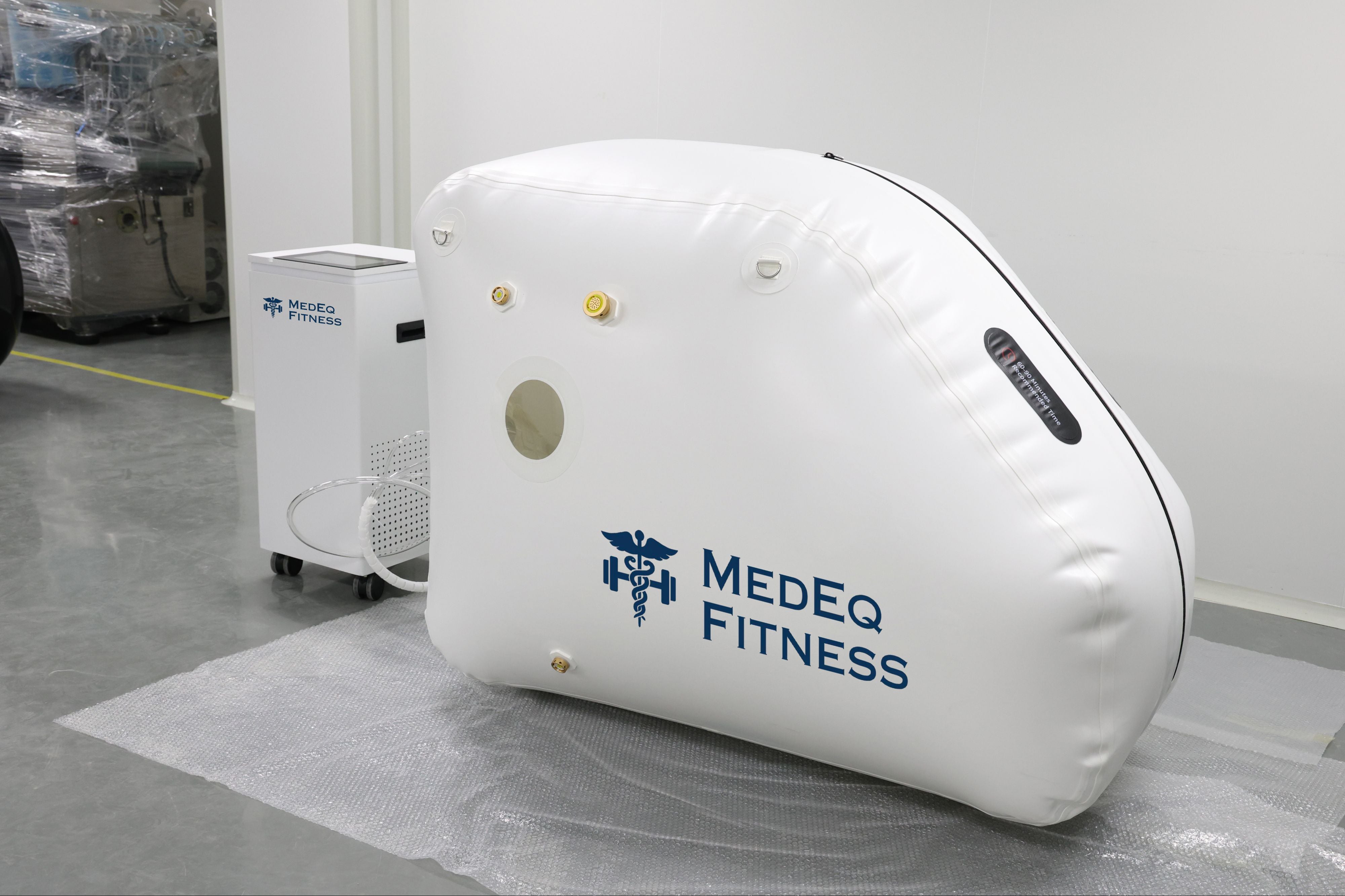

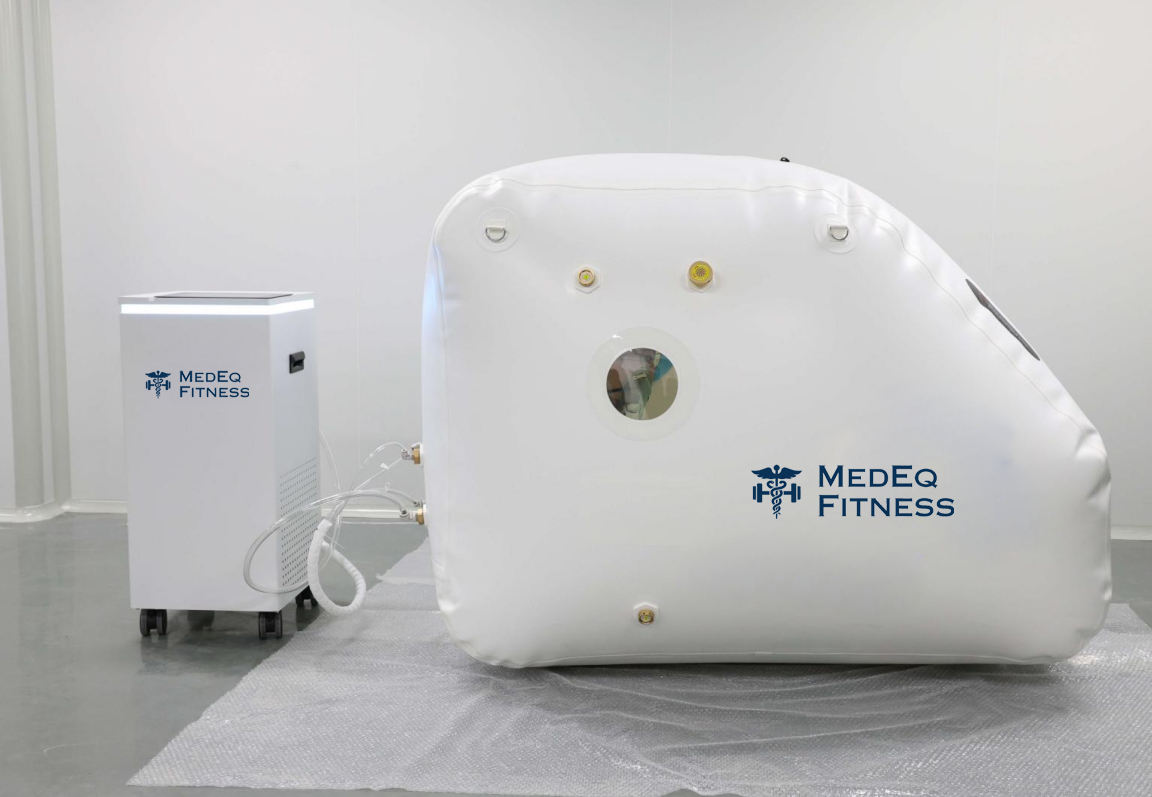

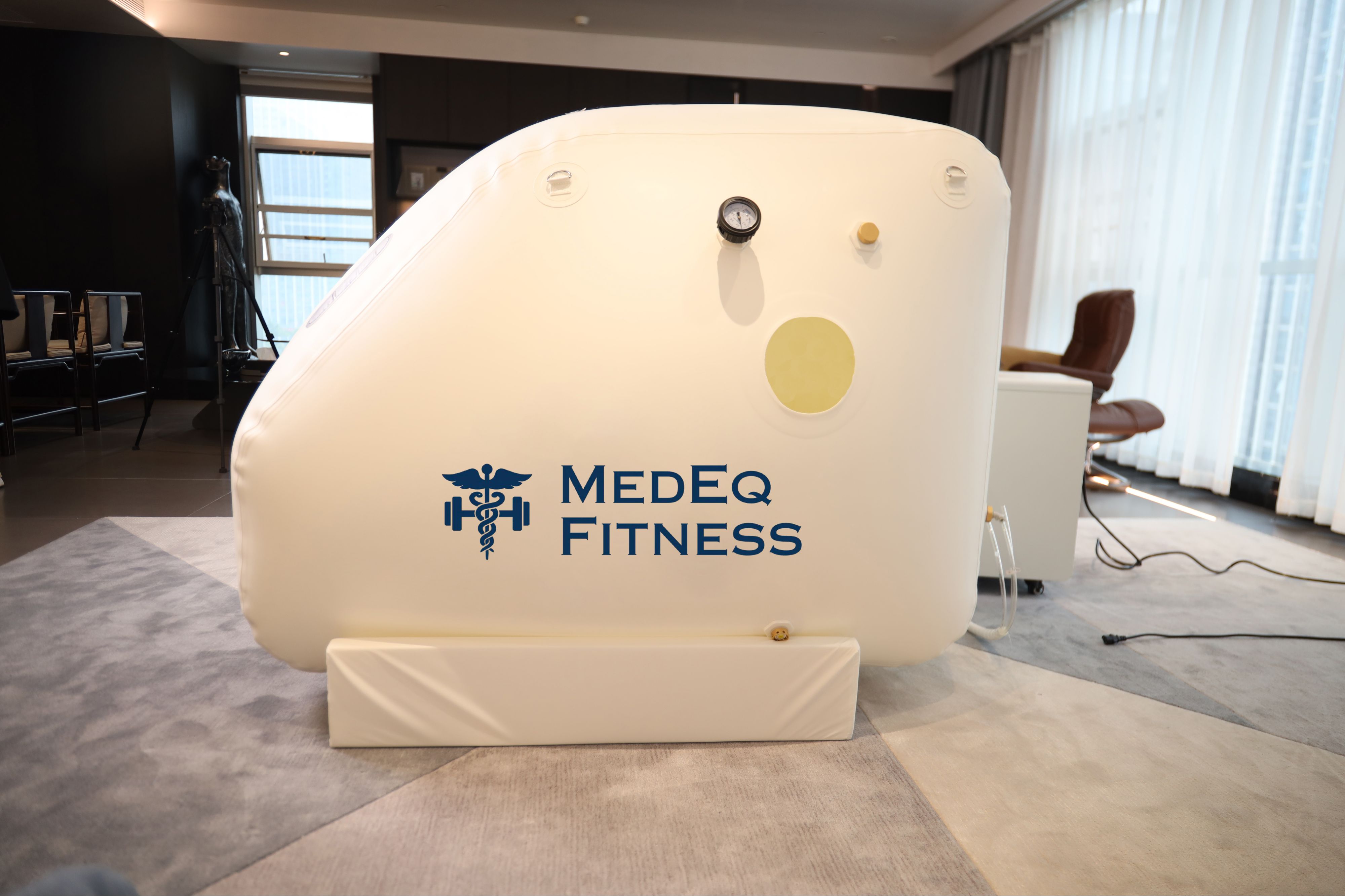

HC-RZ01-10 Sitting Soft Hyperbaric Chamber 1.5ATM

The HC‑RZ01‑10 Sitting Soft Hyperbaric Chamber is a premium, ergonomically designed system that delivers safe, effective mild hyperbaric oxygen therapy at up to 1.5 ATA. Engineered for personal wellness, physical recovery, and restorative therapy, this seated-style chamber combines comfort, portability, and clinical-level performance—ideal for home users, wellness centers, and professional rehabilitation settings.



Specifications:

• Operating Pressure: 1.3 ATA (4.5 PSI) or 1.5 ATA (7.2 PSI)

• Material: 5-Class TPU with high-frequency welded seams

• Windows:

  • Overhead: 45 × 19 cm

  • Side: 15 cm wide on both sides



• Voltage: AC 110V 60Hz / 220V 50Hz





---





Features

• Portable & Foldable Design: Lightweight construction makes it easy to transport and store, ideal for mobile practitioners or small spaces.

• Integrated System (2-in-1): Built-in oxygen concentrator and air compressor for seamless therapy without separate equipment.

• Dual Modes: Switch between HBOT mode and oxygen mode based on your therapeutic needs.

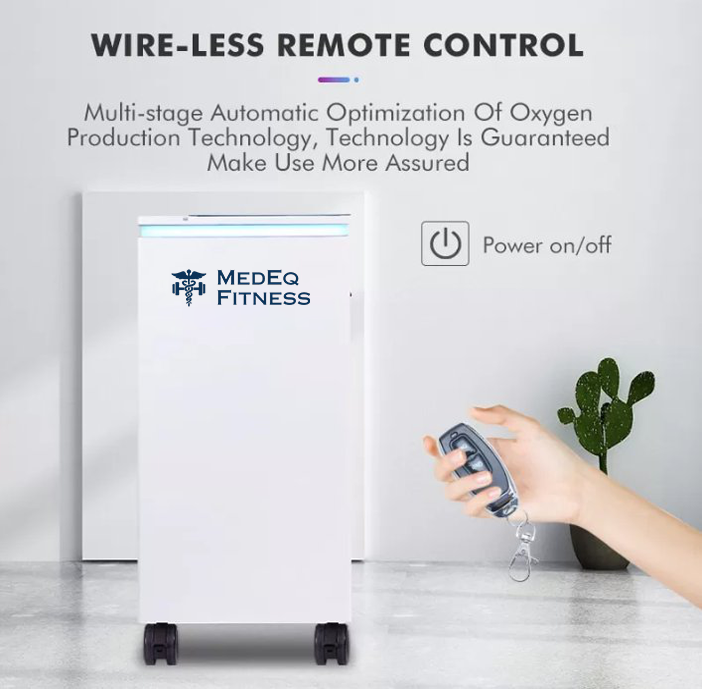

• Wireless Remote Control: Convenient single-user operation via wireless handheld controller.

• Large Viewing Window: 45 cm transparent window provides visibility and comfort during sessions.

• Silent Operation: Equipped with sponge silencer to reduce ambient noise.

• Durable & Eco-Safe: High-frequency welded TPU is non-toxic, non-polluting, and built to last.

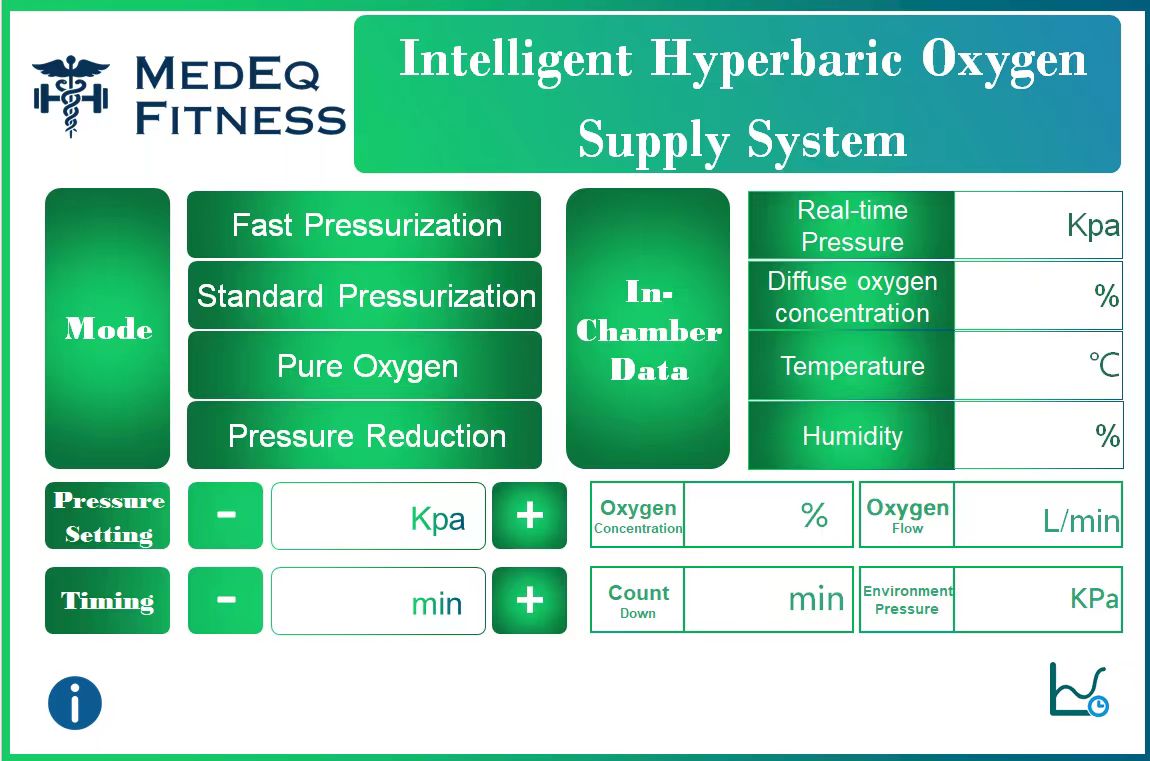

• Real-Time Monitoring: Displays oxygen concentration and chamber pressure throughout the session.

• Color Options: White or Blue chamber with 6 customizable cover colors.

• Optional Accessories: Internal/external frame, air cooler, static discharge mat, chair, and pillows available.





---





Oxygen Concentrator Specs

• Size: 35 × 25 × 67 cm

• Oxygen Flow Rate: 5 L/min

• Air Flow Rate: 60 L/min

• Oxygen Purity: <30% inside the chamber





---





Standard Accessories

• 2 × Automatic Pressure Relief Valves

• 1 × Manual Pressure Relief Valve

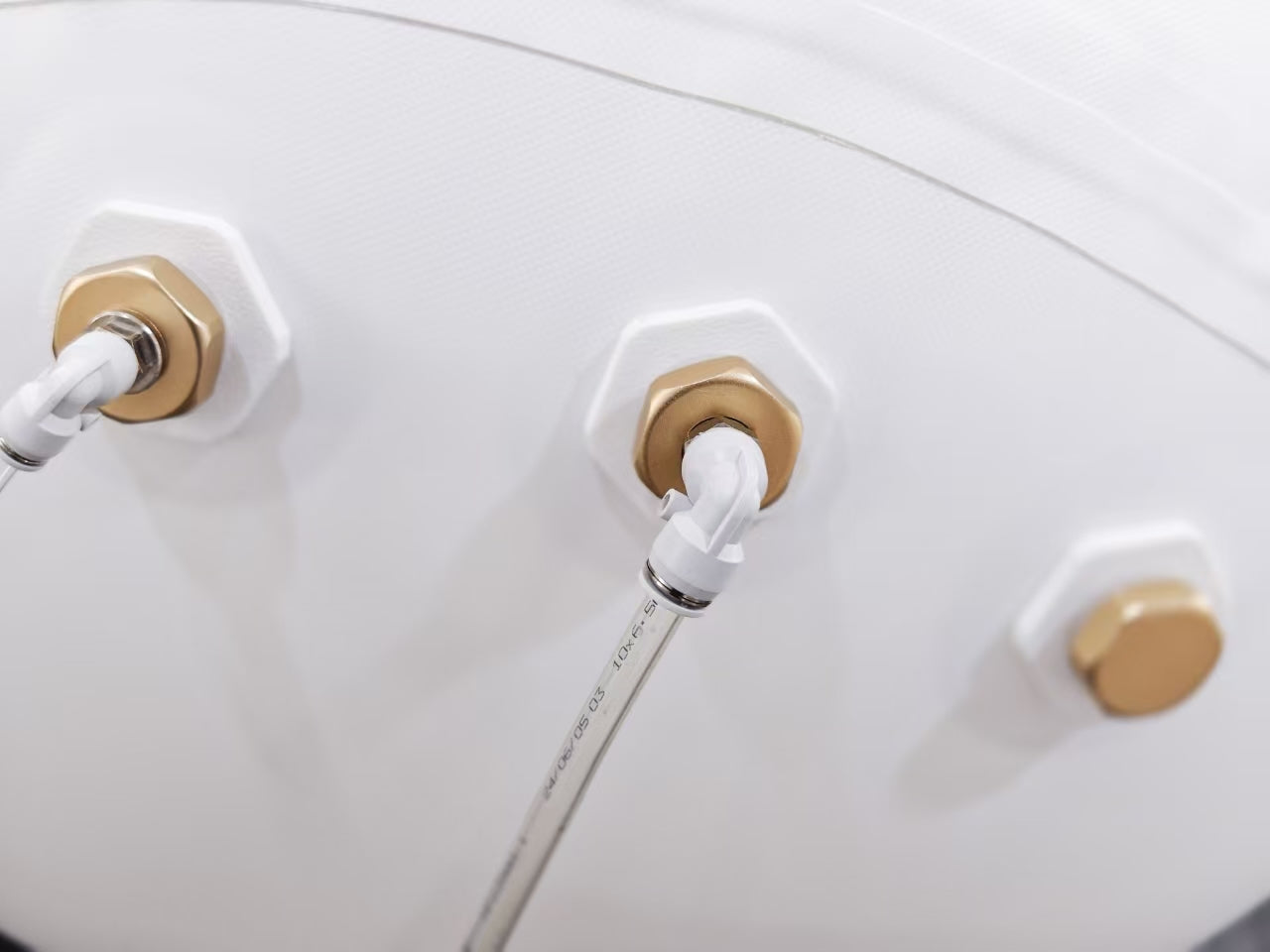

• 3 × Oxygen / Air Inlet Valves

• 2 × 2M Air Columns

• 1 × Internal Pressure Gauge

• 1 × External Pressure Gauge

• 1 × Sponge Silencer

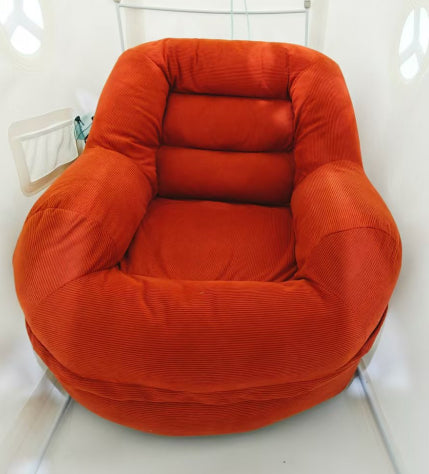

• 1 x Foam Chair



• 1 × User Manual





---





Maintenance

• After Each Use: Wipe interior and accessories with a mild, non-abrasive disinfectant.

• Weekly: Inspect zippers, gauges, valves, and air fittings.

• Annually: Full system inspection and oxygen concentrator servicing.





---





Warranty

• Chamber Material & Zippers: 2 years

• Oxygen System & Compressor: 1 year

• Remote & Accessories: 1 year

---



MedEq Fitness — Portable Power, Proven Performance.

The Olive HC-RZ01-10 is your go-to solution for flexible, reliable hyperbaric therapy at home or on the go.

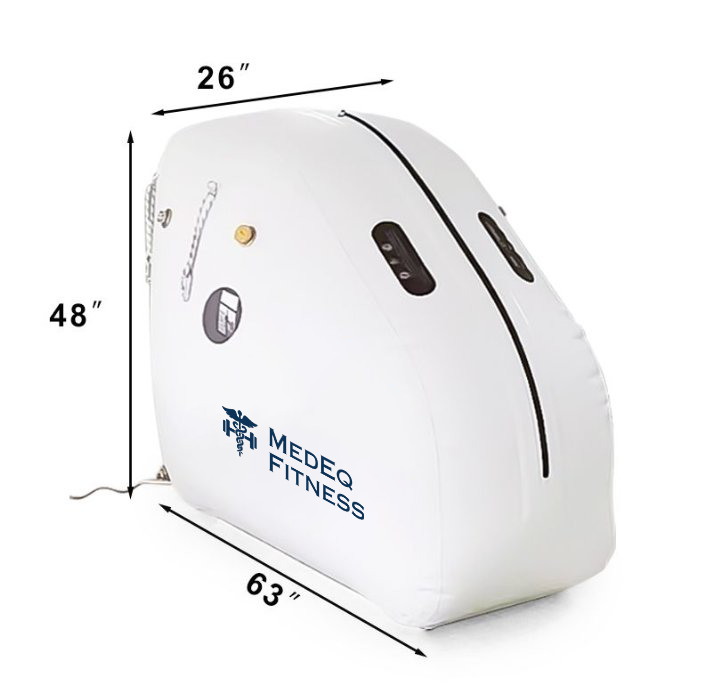

Hyperbaric Chamber：150*66*26cm ,18kg
Oxygen concetrator：96*47*90cm , 88kg

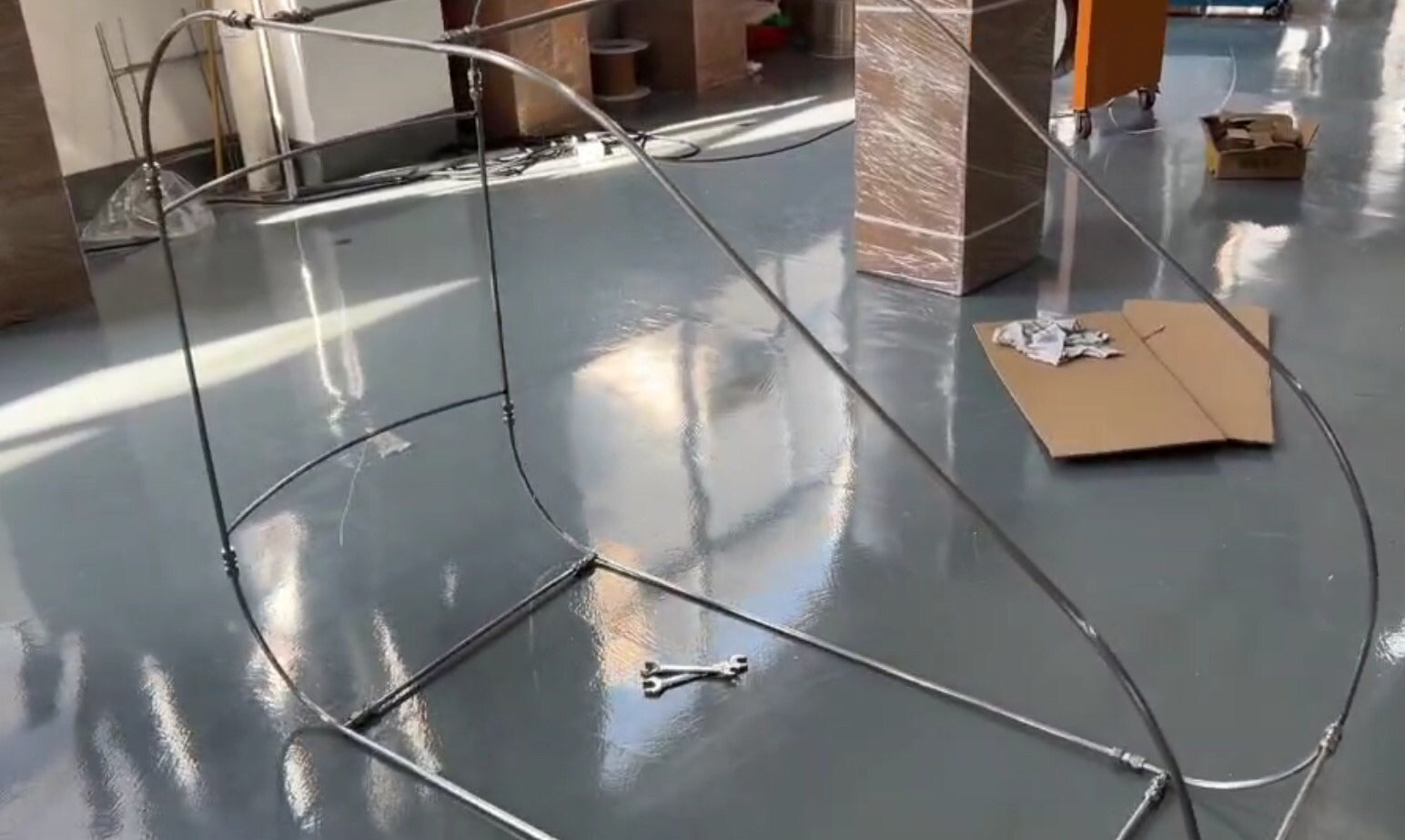

internal frame: 70*55*43cm ,33kg
Foam base ：120x33x31cm， 4kg
Air Cooler：31*30*29cm , 10kg

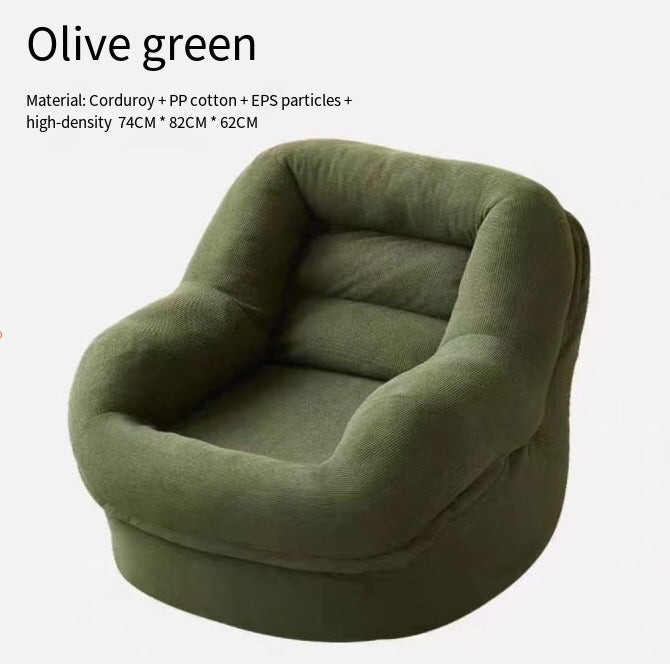

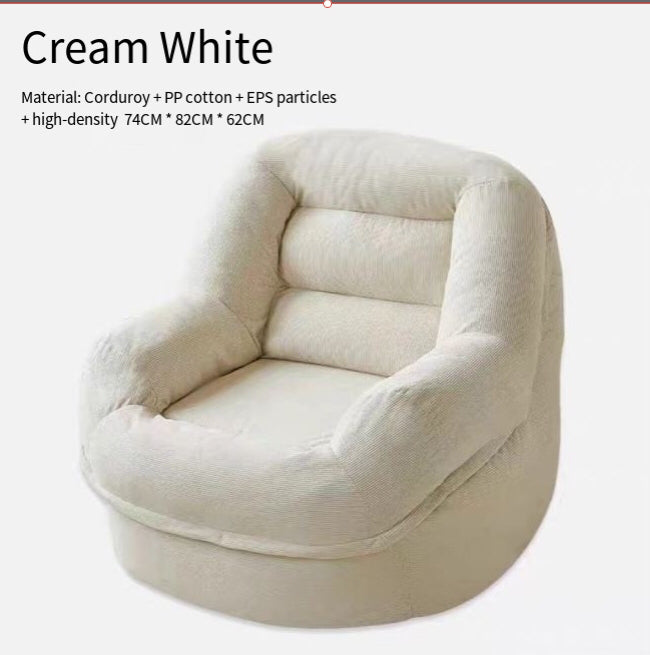

Soft Chair: Sofa: 90*40*50cm, 30kg
